Connector_Zhejiang Shenghui Technology Co,.Ltd.

Connector

PRODUCT

Type

Poles

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Phosphor bronze

Wire Size(AWG)

Shield

Stainless steel

Solder tabs

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Pin

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH6.3ZC-1P

SH6.3ZC-1P

Pitch: 6.3mm

View product

Type

Connector

Poles

1P

Pitch

6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-14

Solder tabs

Tin-plated brass

Pin

Tin-plated brass

SH6.3ZC-1PA

SH6.3ZC-1PA

Pitch: 6.3mm

View product

Type

Connector

Poles

1P

Pitch

6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

SH63001-T

SH63001-T

Pitch: 6.3mm

View product

Type

Connector

Pitch

6.3mm

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-20

SH63003-T

SH63003-T

Pitch: 6.3mm

View product

Type

Connector

Pitch

6.3mm

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-20

Microwave oven

Microwave oven

Pitch: 4.8mm,6.3mm

View product

Type

Connector

Pitch

4.8mm,6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-14

Hard sheath

Hard sheath

Pitch: 4.8mm,6.3mm

View product

Type

Connector

Pitch

4.8mm,6.3mm

Material - Resin and Flammability

Nylon 66 UL 94V-2,PA66 UL94V-2

Voltage - Maximum

125V,250V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A,12A AC/DC

Wire Size(AWG)

20-14,24-14

SH6.3ZC-1R

SH6.3ZC-1R

Pitch: 6.3mm

View product

Type

Connector

Poles

1P

Pitch

6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Wire Size(AWG)

24-14

SH6.3ZC-2NB

SH6.3ZC-2NB

Pitch: 6.3mm

View product

Type

Connector

Poles

2P

Pitch

6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-14

Solder tabs

Tin-plated brass

Pin

Tin-plated brass

SH6.3ZC-2S-BK

SH6.3ZC-2S-BK

Pitch: 6.3mm

View product

Type

Connector

Poles

2P

Pitch

6.3mm

Material - Resin and Flammability

PA66 UL94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-14

Solder tabs

Tin-plated brass

Pin

Tin-plated brass

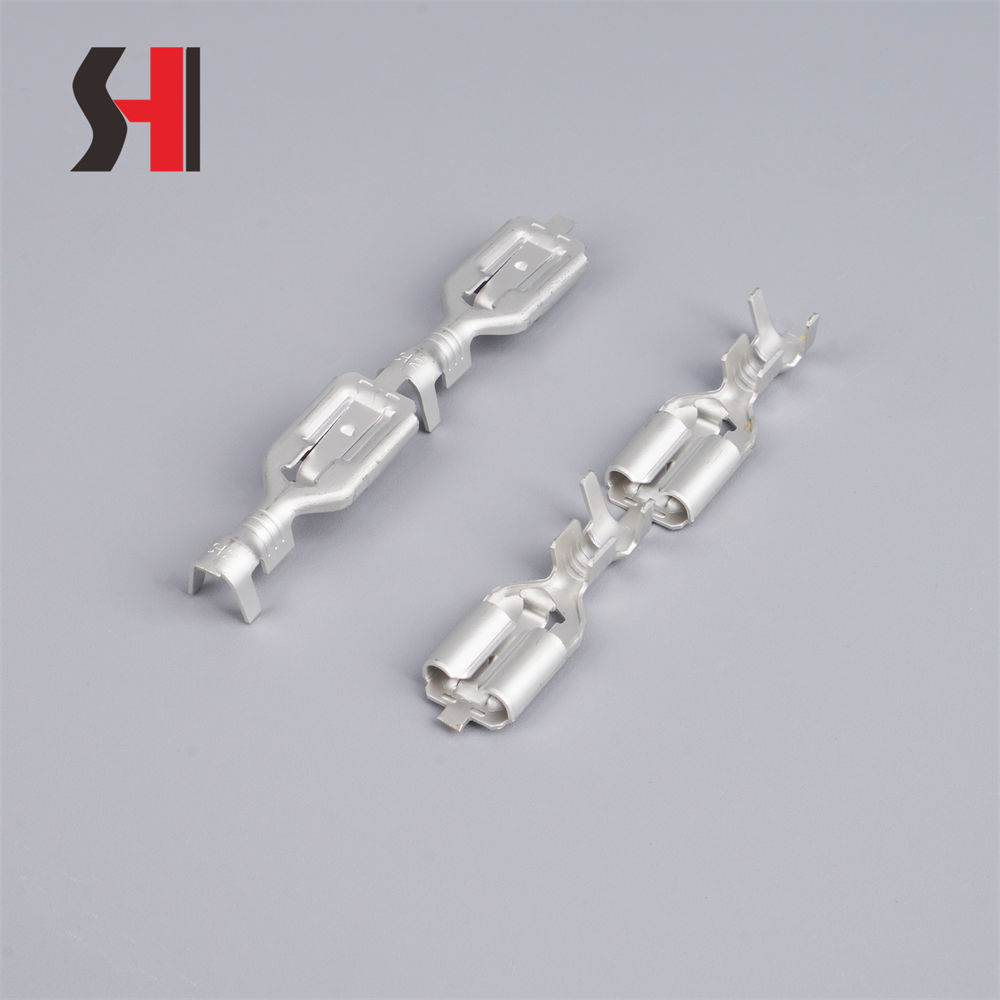

SH63002-T

SH63002-T

Pitch: 6.3mm

View product

Type

Connector

Pitch

6.3mm

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

12A AC/DC

Material

Brass

Wire Size(AWG)

24-20
