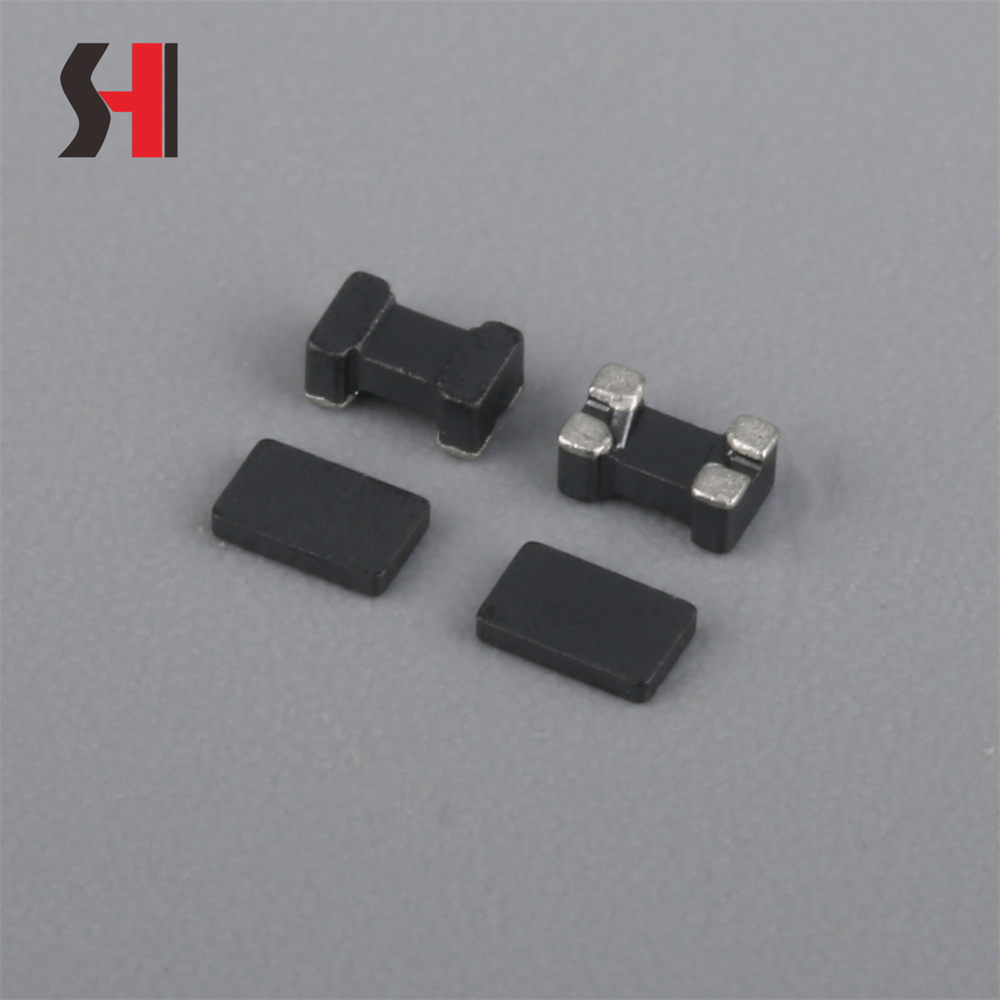

2012
View product
Screening results
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Impedance (Ω)
600
Frequency - self-resonance
100MHz
Height - Installation (Max)
1.4mm
Packaging/Housing
Surface Mount Inductor
Size
H42D DRS 2.08X1.26X0.88
Thickness (±0.20)
1.2
Number of coils
2UEW-φ0.035X1PX9TS
Material - Magnetic core
H42D

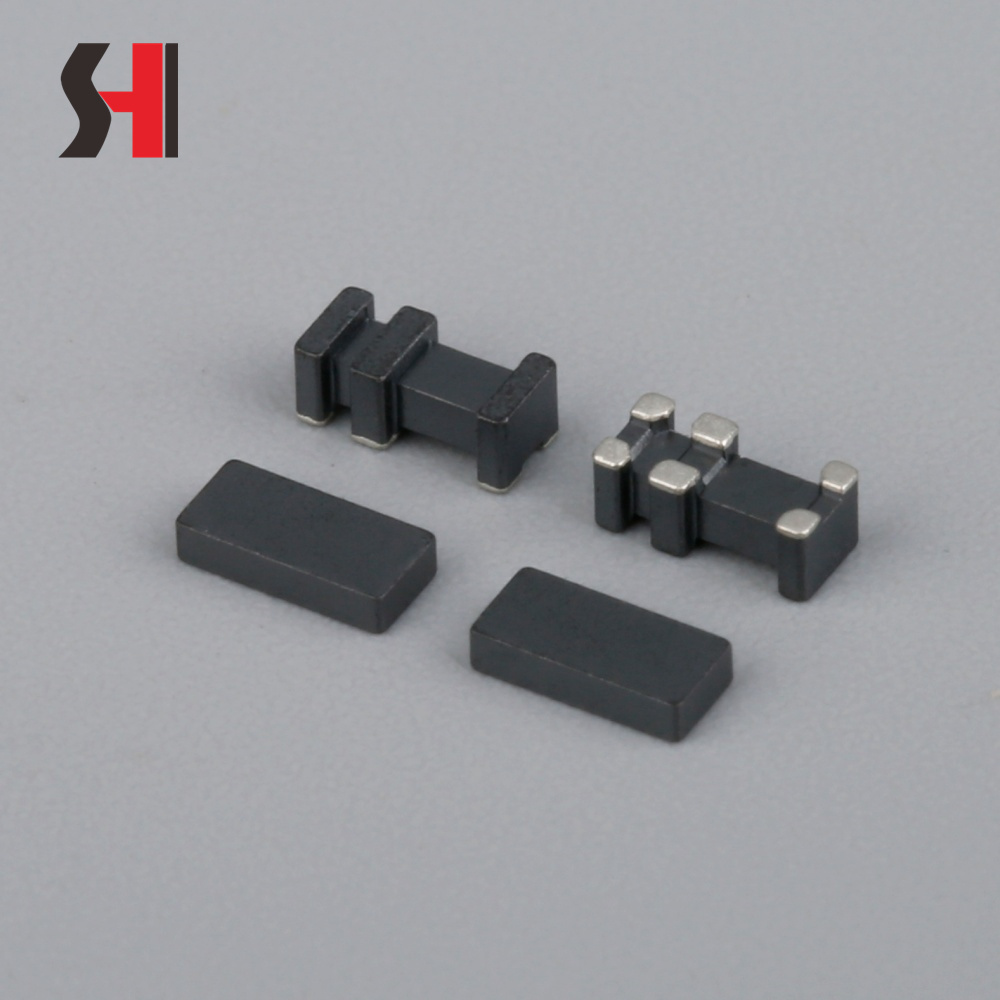

3216
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Impedance (Ω)
600
Frequency - self-resonance
100MHz
Height - Installation (Max)
1.4mm
Packaging/Housing
Surface Mount Inductor
Size
H20C 3.38X1.58X0.70-E,H20C DRS 3.36X1.60X1.32-6P
Thickness (±0.20)
1.2
Number of coils
2UEW-φ0.035X1PX9TS
Material - Magnetic core
H20C

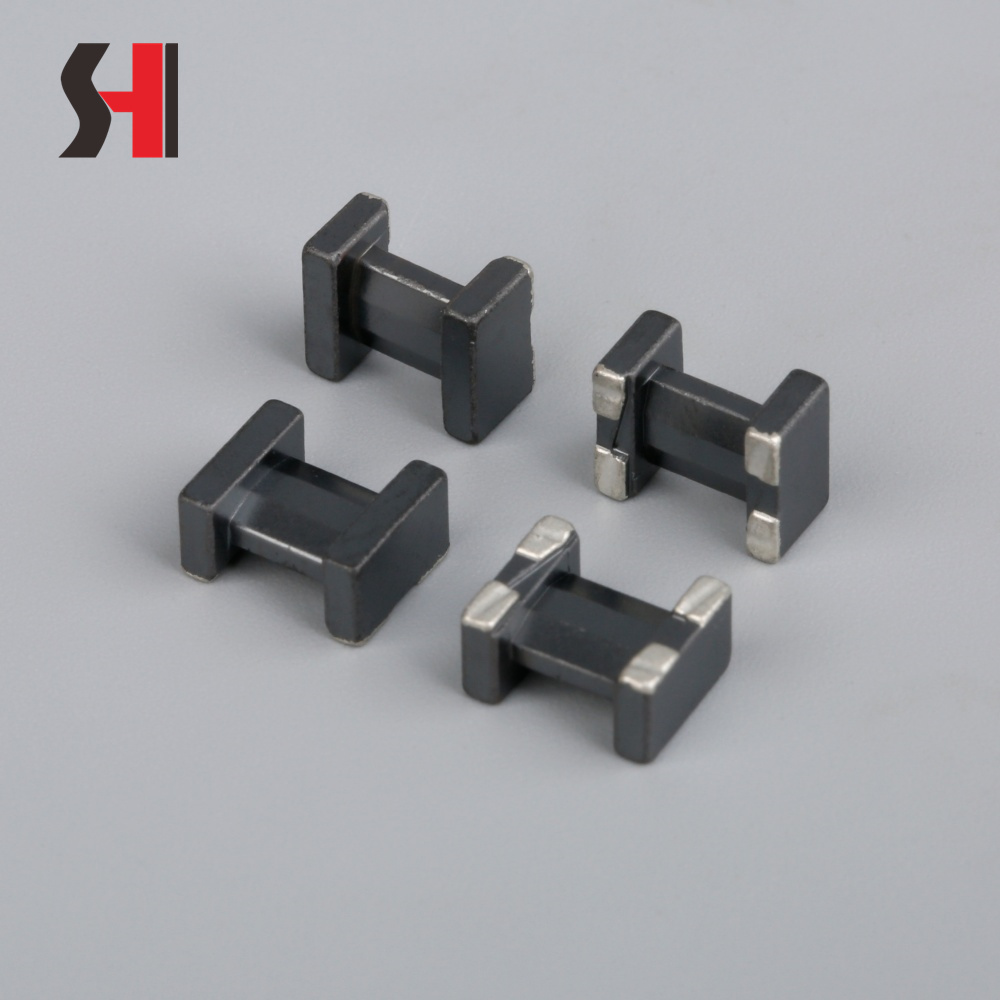

7060
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Frequency - self-resonance
100KHz-0.1V amplitude
Height - Installation (Max)
3.4mm
Inductor
3.29 to 6.11
Packaging/Housing
Surface Mount Inductor
Size
H20C DRS 7.40X6.00X3.80
Thickness (±0.20)
3.2
Number of coils
2UEW-φ0.35X1PX7TS
Inductor - Parallel
3.29 to 6.11
Material - Magnetic core
H20C

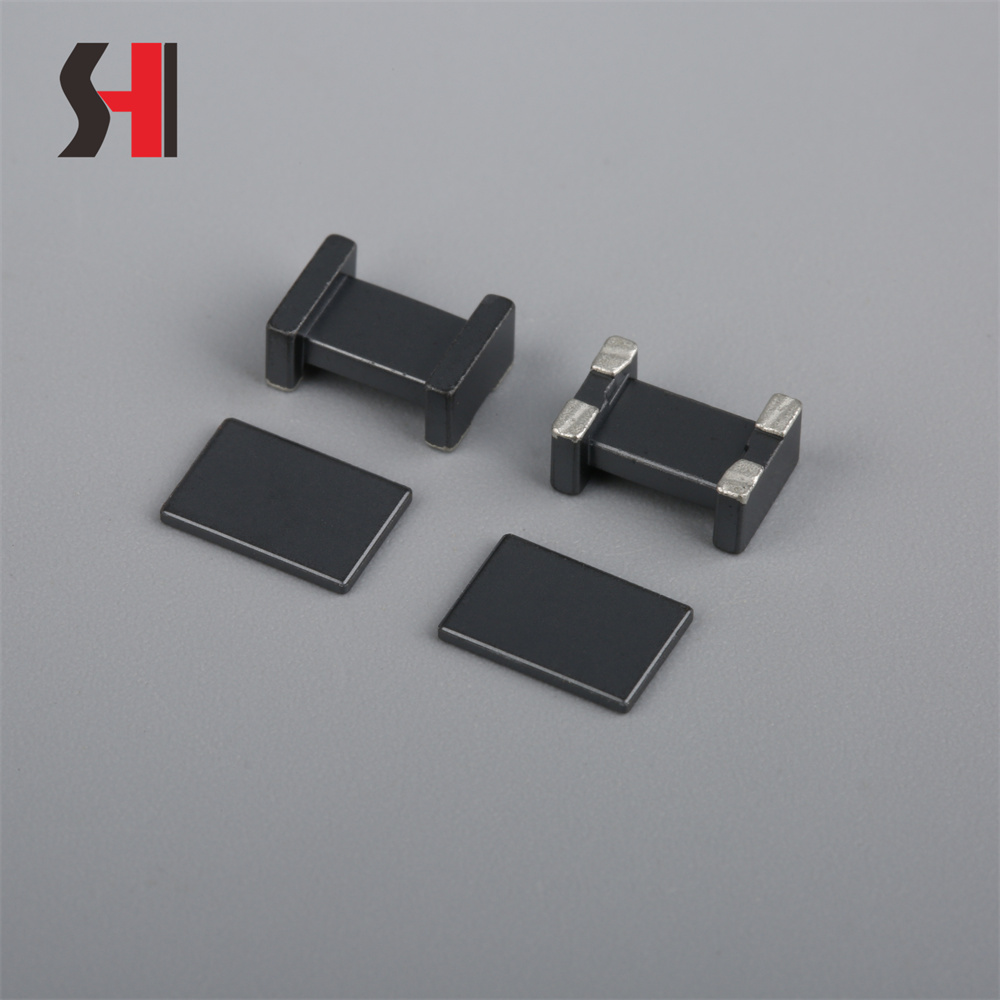

6545
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Impedance (Ω)
600
Frequency - self-resonance
100MHz
Height - Installation (Max)
1.4mm
Packaging/Housing
Surface Mount Inductor
Size
H20C DRS 6.50X4.50X0.50-A
Thickness (±0.20)
1.2
Number of coils
2UEW-φ0.035X1PX9TS
Material - Magnetic core
H20C

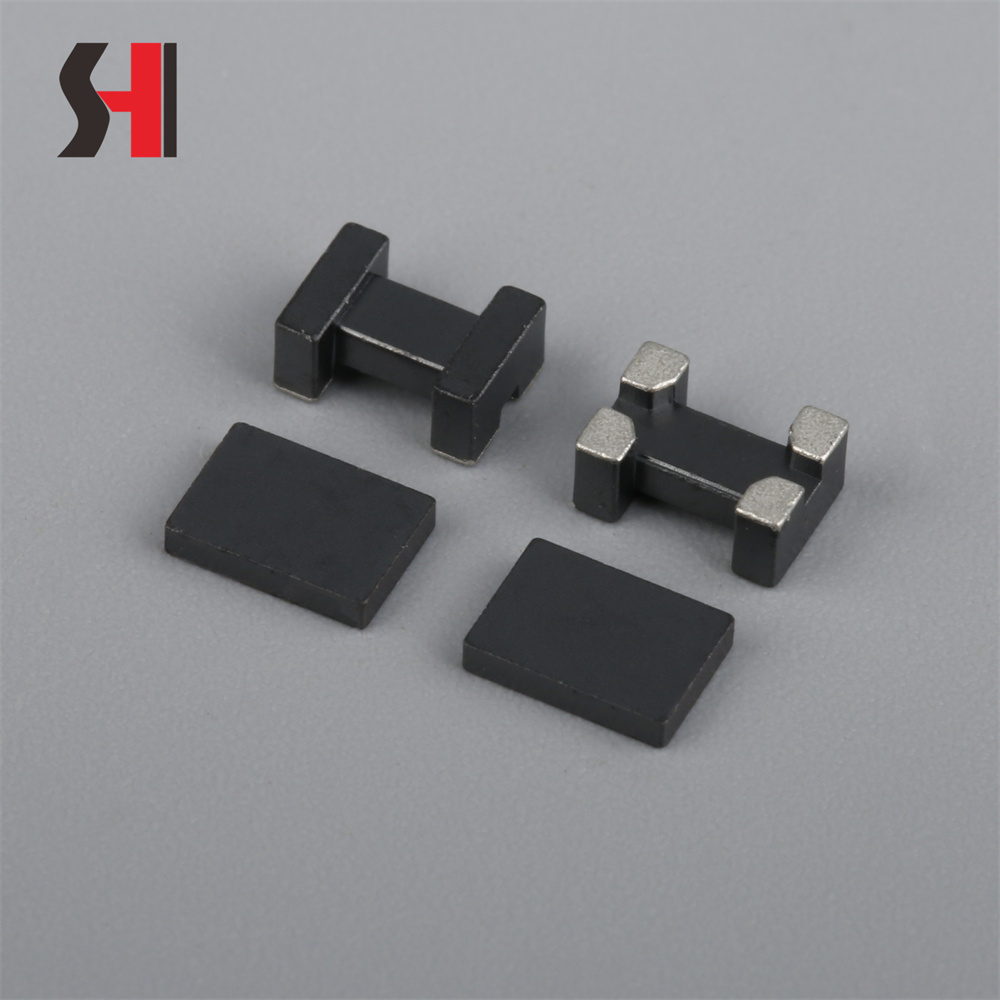

4532
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Impedance (Ω)
600
Frequency - self-resonance
100MHz
Height - Installation (Max)
1.4mm
Packaging/Housing
Surface Mount Inductor
Size
H80D DRS 4.50X3.20X2.00
Thickness (±0.20)
1.2
Number of coils
2UEW-φ0.035X1PX9TS
Material - Magnetic core
H80D

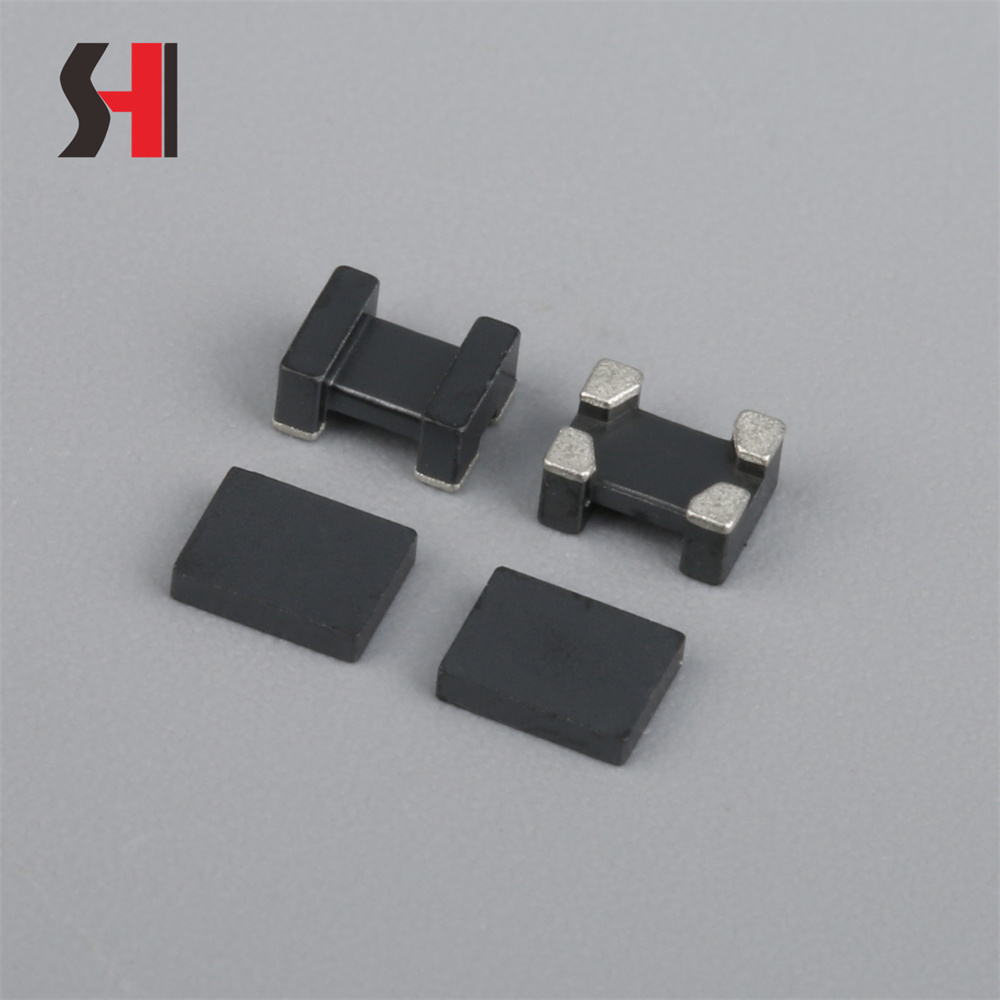

3225
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Impedance (Ω)
600
Frequency - self-resonance
100MHz
Height - Installation (Max)
1.4mm
Packaging/Housing
Surface Mount Inductor
Size
H80D I 3.20X2.50X0.65-A
Thickness (±0.20)
1.2
Number of coils
2UEW-φ0.035X1PX9TS
Material - Magnetic core
H80D

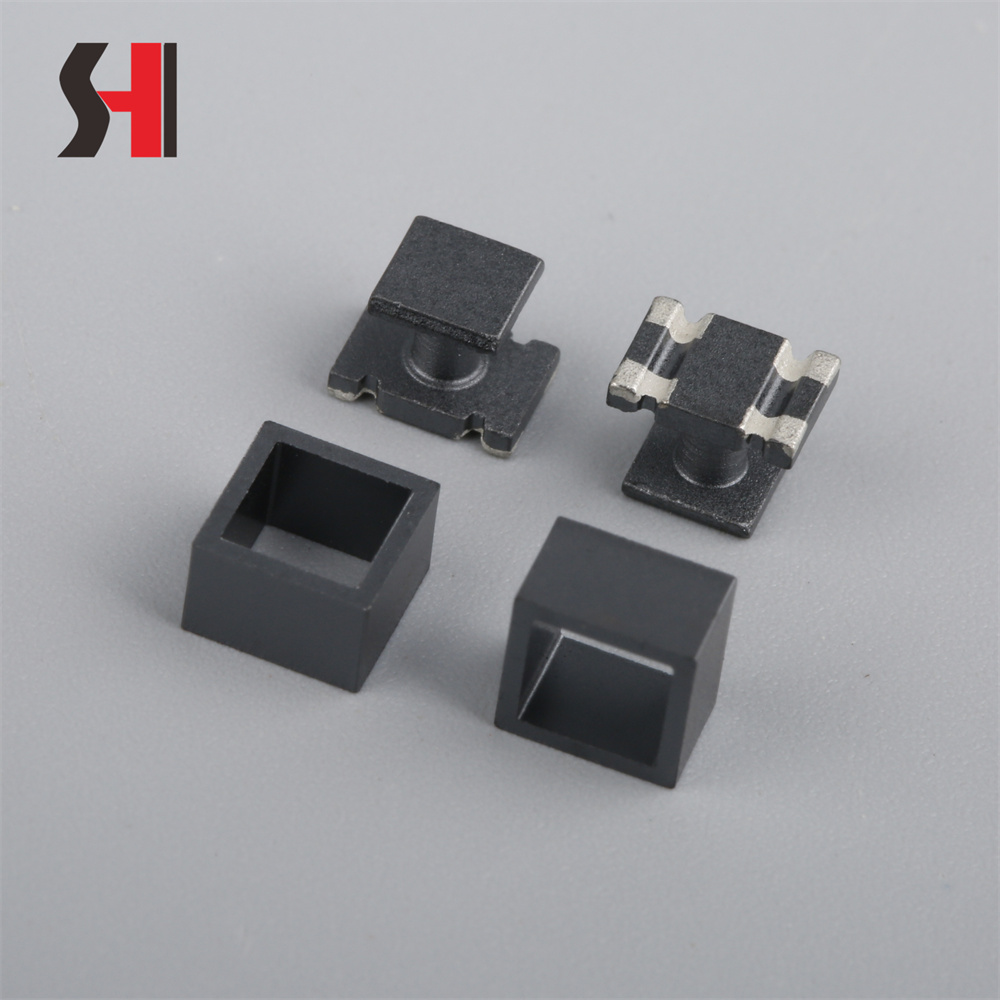

R5025
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Impedance (Ω)
500
Frequency - self-resonance
100MHz
Height - Installation (Max)
5.2mm
Packaging/Housing
Surface Mount Inductor
Size
T45B SDR 5.00X3.50X4.00
Thickness (±0.20)
5.2
Number of coils
2UEW-φ0.21X1PX3.5TS
Rated current - Parallel
4
DC resistor - Parallel
26.5
Material - Magnetic core
H20C
DC resistor
26.5

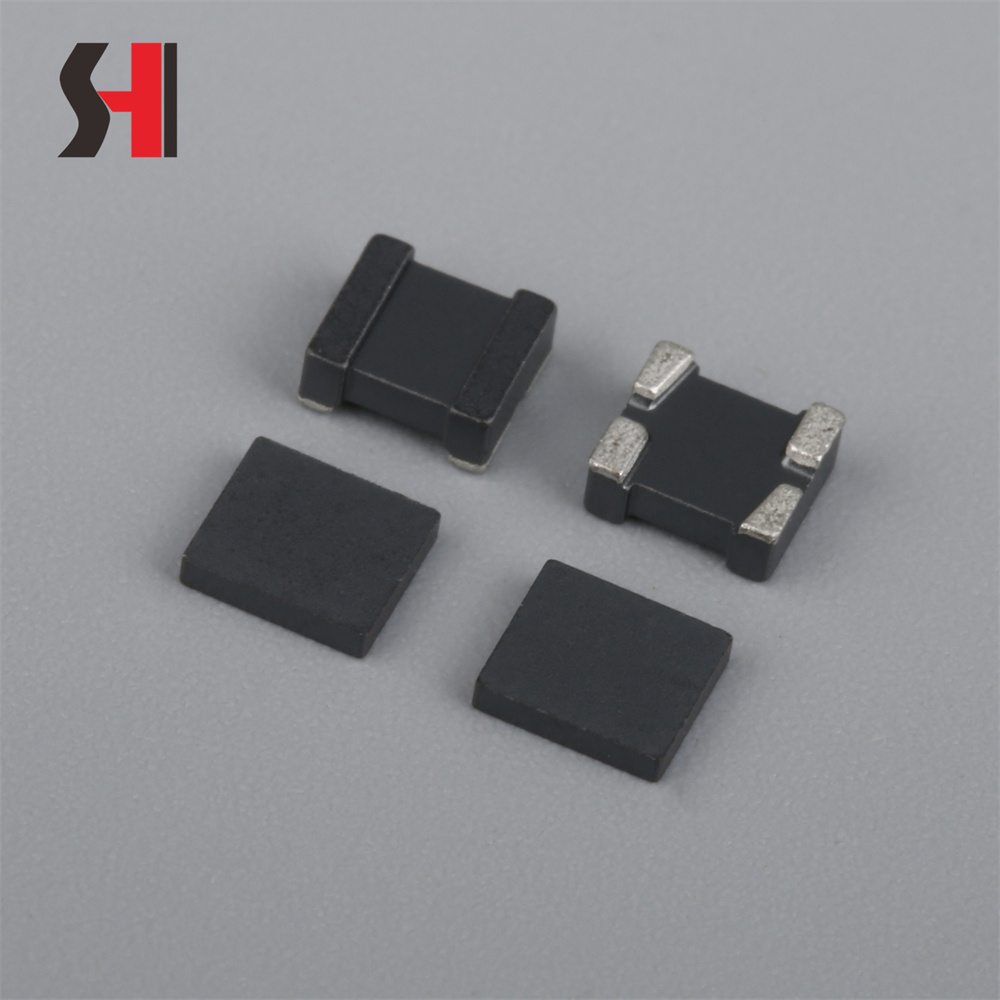

3532
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Frequency - self-resonance
100KHz-0.1V amplitude
Height - Installation (Max)
2.2mm
Inductor
1.0uH MIN
Packaging/Housing
Surface Mount Inductor
Size
H20C DRS 3.50X3.15X1.37
Thickness (±0.20)
2.0
Number of coils
2UEW-φ0.10X1PX10TS
Inductor - Parallel
1.0uH MIN
Material - Magnetic core
H20C

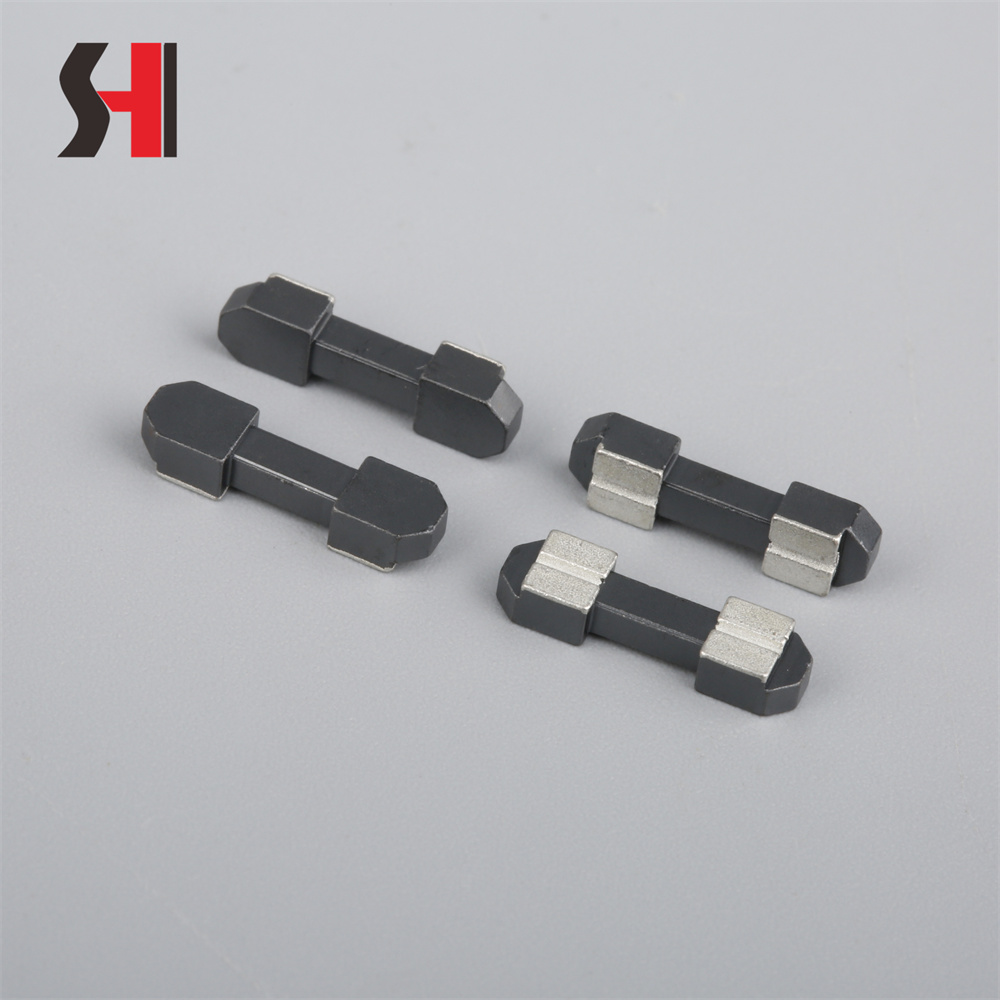

1028
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Frequency - self-resonance
1KHz-0.25V amplitude
Height - Installation (Max)
2.2mm
Inductor
12.5uH MIN
Packaging/Housing
Surface Mount Inductor
Size
H80D DRS 10.8X2.85X2.0
Thickness (±0.20)
2.0
Number of coils
2UEW-φ0.10X1PX26TS
Inductor - Parallel
12.5uH MIN
Material - Magnetic core
H80D

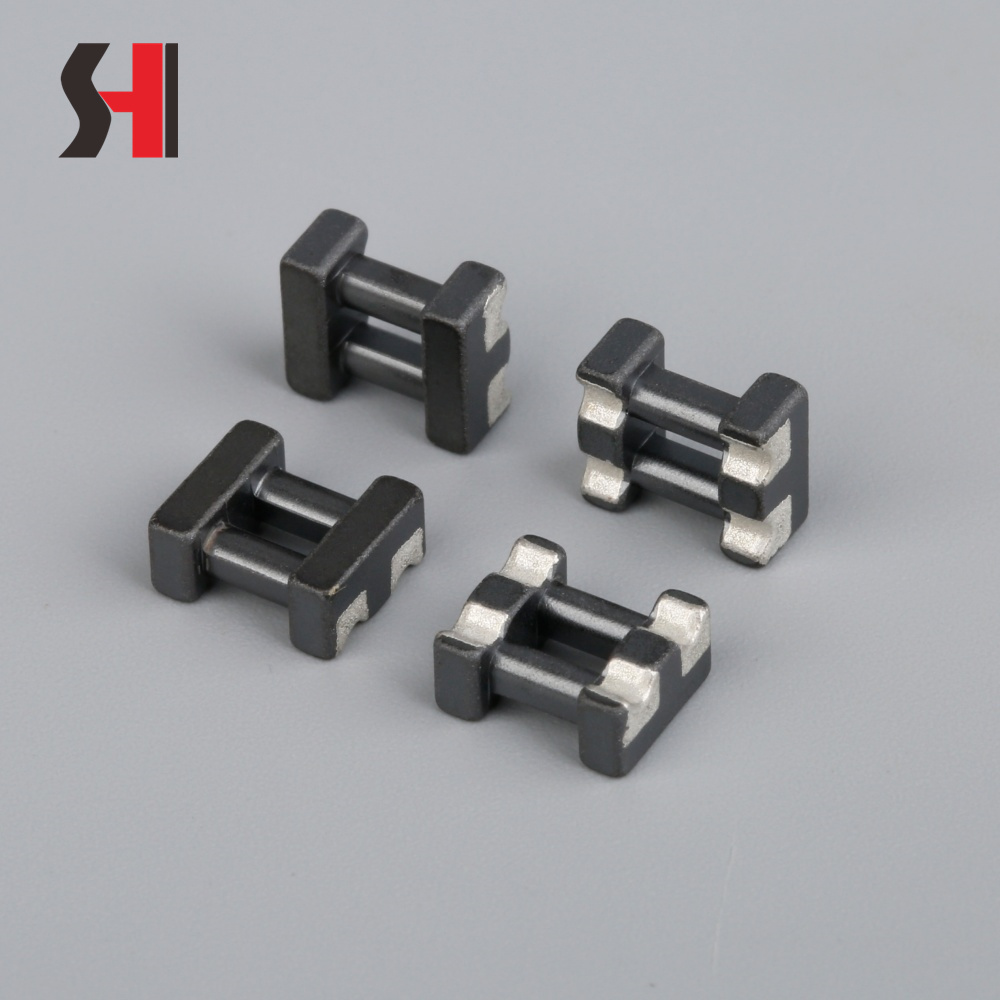

SQ7060
View product
Type
Inductor
Installation method
Surface Mount
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Frequency - self-resonance
100KHz-0.1V amplitude
Height - Installation (Max)
3.4mm
Inductor
3.29 to 6.11
Packaging/Housing
Surface Mount Inductor
Size
H42D SQ 6.9X5.8X3.0
Thickness (±0.20)
3.2
Number of coils
2UEW-φ0.35X1PX7TS
Inductor - Parallel
3.29 to 6.11
Material - Magnetic core
H42D
