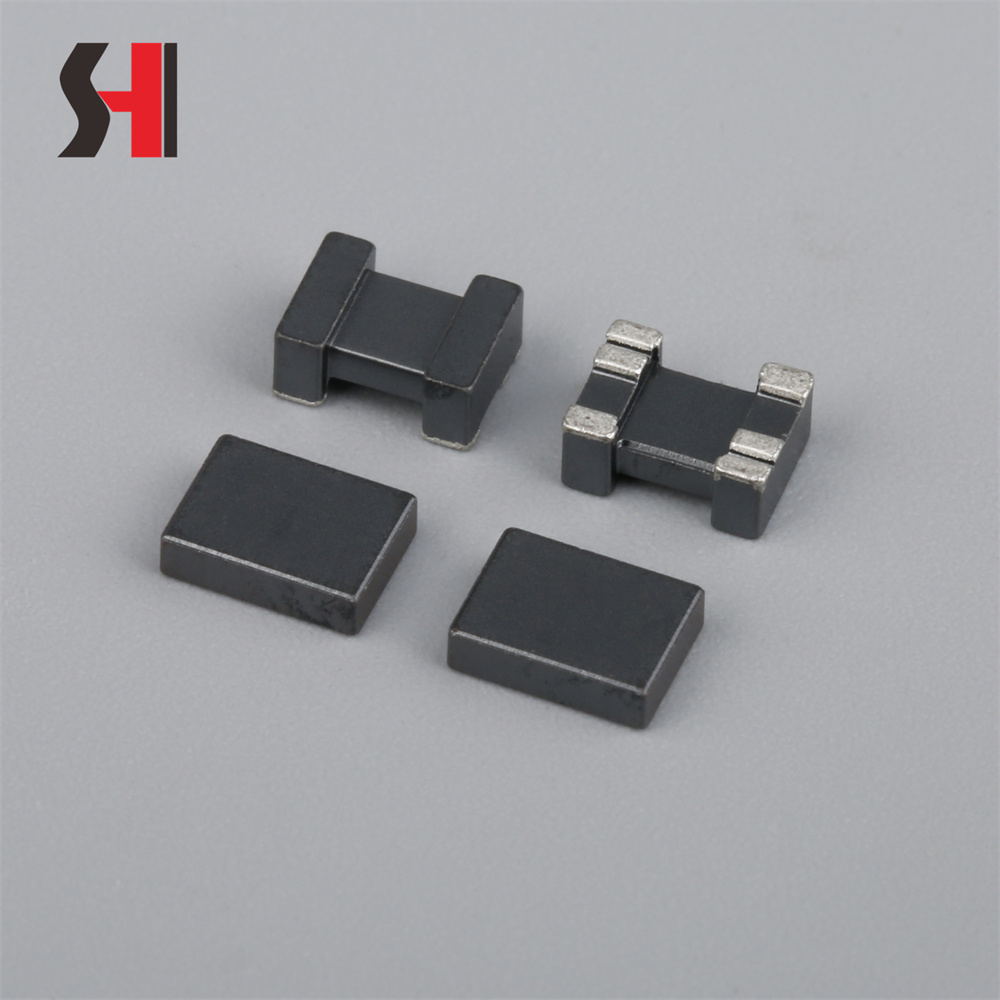

4634
View product
Screening results
Type
Inductor
Rated power (mA)
10.8
Installation method
Surface Mount
Tolerance (pF)
290
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Temperature coefficient (℃)
25
Frequency - self-resonance
100KHz-0.1V amplitude
Height - Installation (Max)
3.0mm
Inductor
165uH Min
Packaging/Housing
Surface Mount Inductor
Size
H15C DRS 4.60x3.40x1.90-D
Thickness (±0.20)
2.8
Number of coils
2UEW-φ0.05X1PX24TS
Inductor - Series
165uH Min
Saturation current - Series
13mA
Material - Magnetic core
H15C
Rated current
200mA
3416
View product
Type
Inductor
Rated power (mA)
200
Installation method
Surface Mount
Tolerance (pF)
290
Working temperature (℃)
-40 to 85
Encapsulation
SOP
Resistance error (±%)
20
Temperature coefficient (℃)
25
Frequency - self-resonance
100KHz-0.1V amplitude
Height - Installation (Max)
2.2mm
Inductor
60uH Min
Packaging/Housing
Surface Mount Inductor
Size
H20C I 3.38X1.58X0.70-E
Thickness (±0.20)
2.0
Inductor - Series
60uH Min
Saturation current - Series
240mA
DC resistor - Series
1.7Ω
Material - Magnetic core
H20C
Rated current
200mA
DC resistor
1.7Ω
