Product

Product Center

PRODUCT

Type

Poles

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Phosphor bronze

Wire Size(AWG)

Shield

Stainless steel

Solder tabs

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Pin

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH50002-T-01

SH50002-T-01

Pitch: 5.0mm

View product

Type

Connector

Poles

2P,3P,4P,6P

Pitch

5.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

24-16

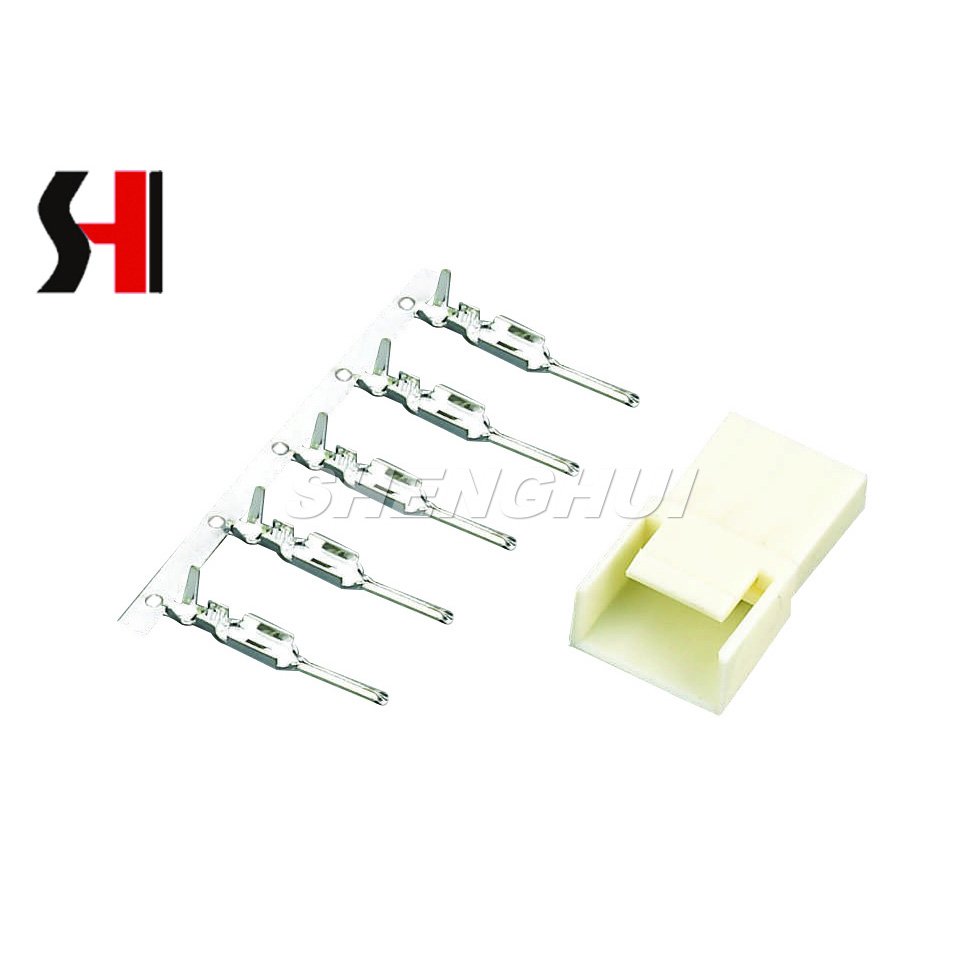

SH39606

SH39606

Pitch: 3.96mm

View product

Type

Connector

Poles

3P

Pitch

3.96mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Wire Size(AWG)

26-18

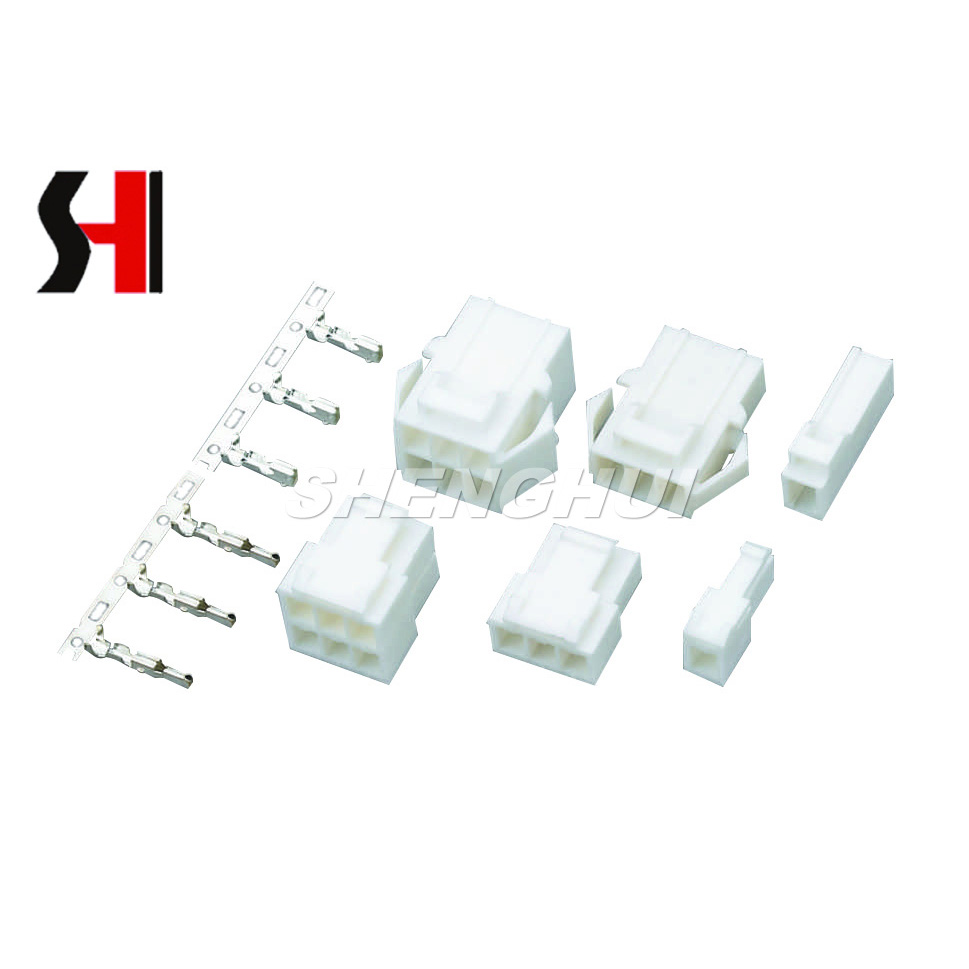

SH42001

SH42001

Pitch: 4.2mm

View product

Type

Connector

Poles

2P,3P,4P

Pitch

4.2mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

600V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Wire Size(AWG)

24-18

SH50002

SH50002

Pitch: 5.0mm

View product

Type

Connector

Poles

2P,3P,4P,6P

Pitch

5.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Wire Size(AWG)

24-16

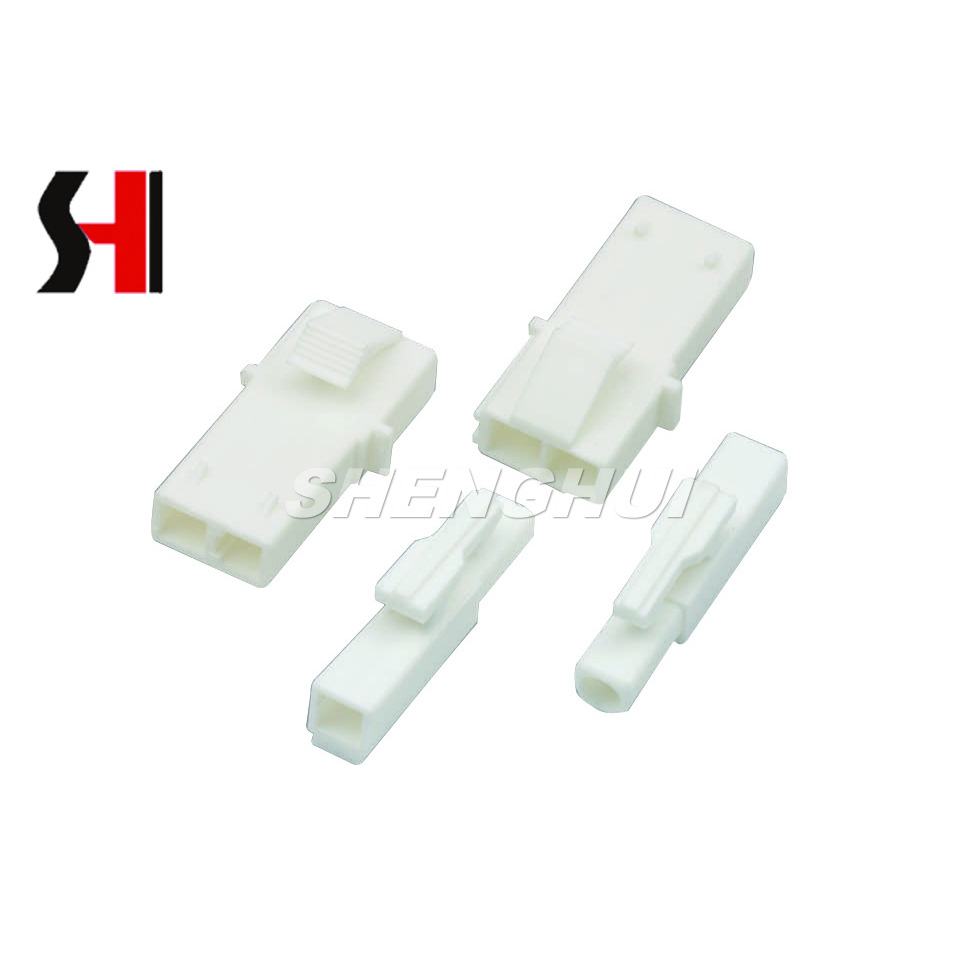

SH58000

SH58000

Pitch: 5.8mm

View product

Type

Connector

Poles

1P,2P

Pitch

5.8mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC
