Screening results
Type
Connector
Pitch
1.0mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Color - Resin
Natural
Voltage - Maximum
500V AC/DC
Current - Maximum per Contact(Max)(A)
1.0A AC/DC
Material
Brass,Phosphor bronze
Wire Size(AWG)
32-28
Solder tabs
Tin-plated brass
Pin
Phosphor bronze tin-plated

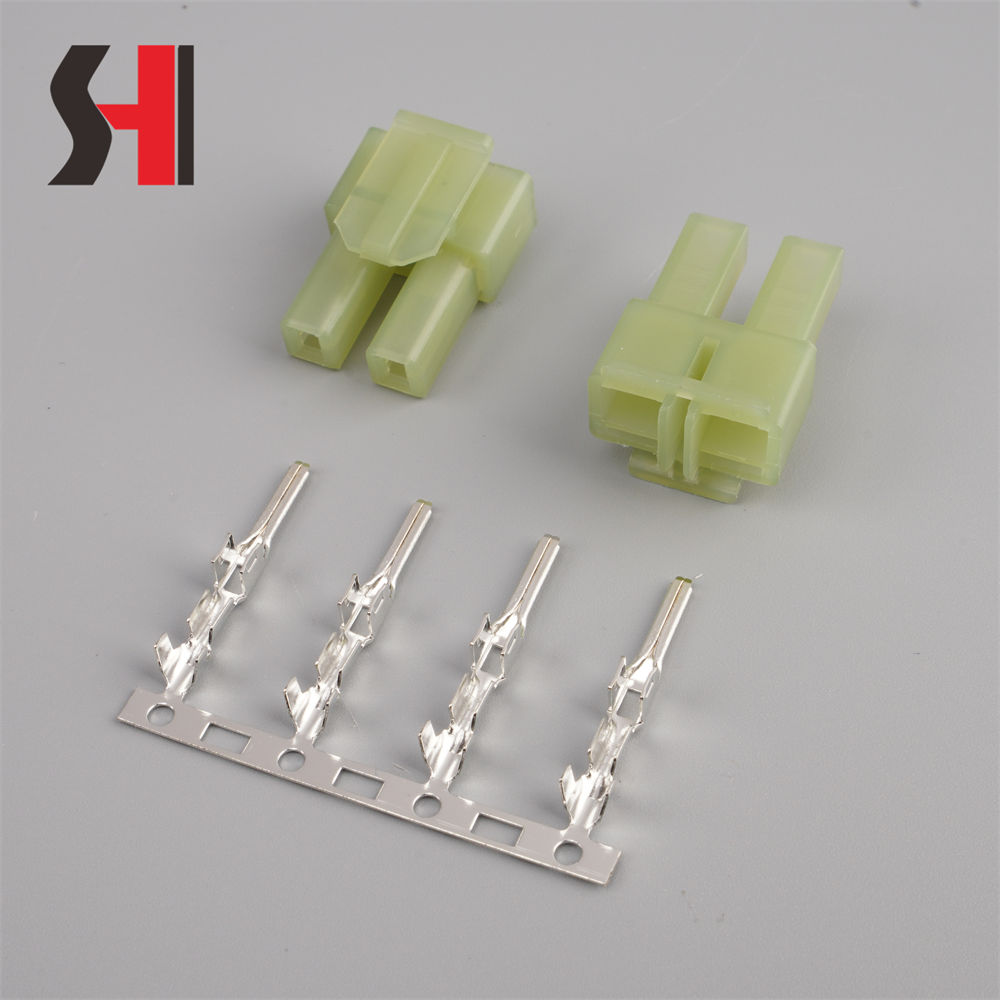

Type
Connector
Poles
2P
Pitch
8.0mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Voltage - Maximum
500V AC/DC
Current - Maximum per Contact(Max)(A)
15A AC/DC
Material
Phosphor bronze
Type
Connector
Poles
2 to 16P
Pitch
2.5mm
Material - Resin and Flammability
Nylon 66 UL 94V-0 or UL 94V-2
Voltage - Maximum
500V AC/DC
Current - Maximum per Contact(Max)(A)
3.0A AC/DC
Wire Size(AWG)
28-22
Pin
Tin-plated brass
