Connector

PRODUCT

Type

Poles

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Phosphor bronze

Wire Size(AWG)

Shield

Stainless steel

Solder tabs

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Pin

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH10007

SH10007

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

0.5A AC/DC

Material

Brass,Phosphor bronze

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH10008

SH10008

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH10011

SH10011

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

0.5A AC/DC

Material

Brass,Phosphor bronze

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH10012

SH10012

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

500V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH10016

SH10016

Pitch: 1.0mm

View product

Type

Connector

Poles

6P

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

SH10000

SH10000

Pitch: 1.0mm

View product

Type

Connector

Poles

2 to 20P

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

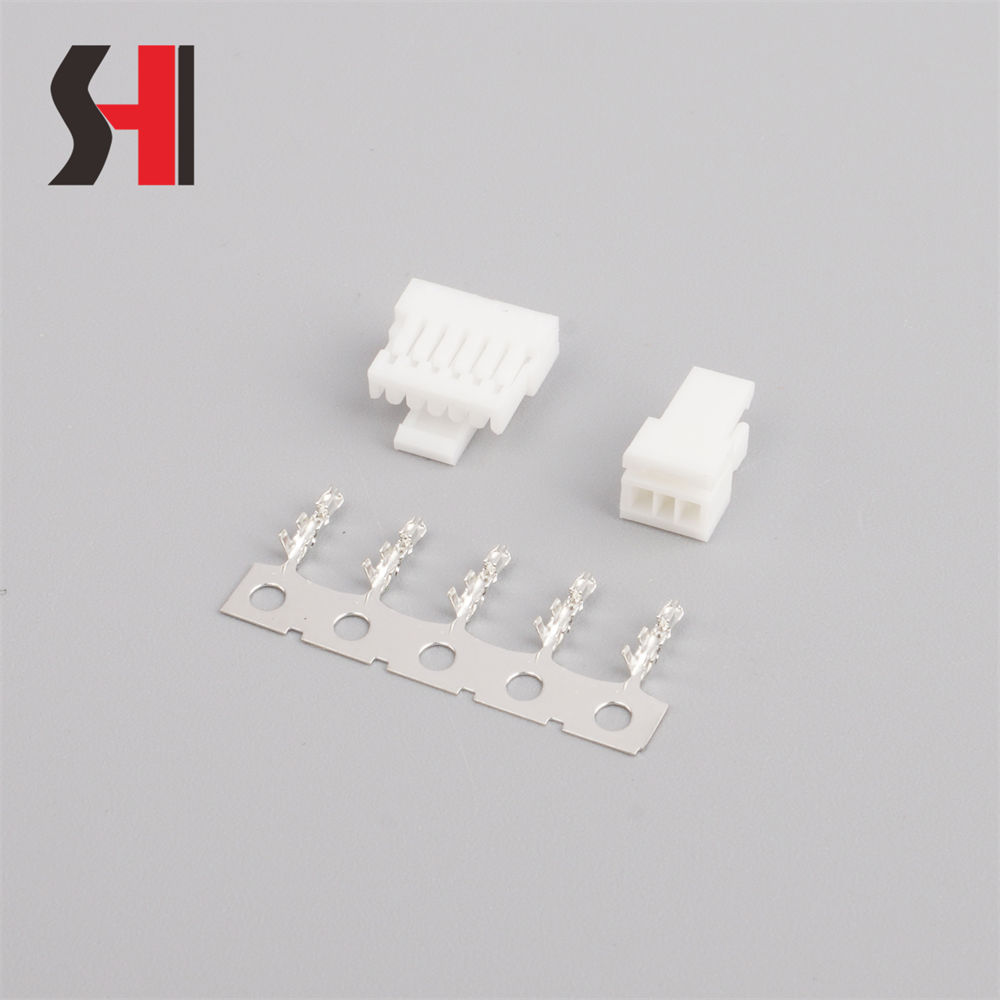

SH10009

SH10009

Pitch: 1.0mm

View product

Type

Connector

Poles

2 to 20P

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28
