Connector

PRODUCT

Type

Poles

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Phosphor bronze

Wire Size(AWG)

Shield

Stainless steel

Solder tabs

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Pin

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH12502

SH12502

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH12506

SH12506

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH12510

SH12510

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH12513

SH12513

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

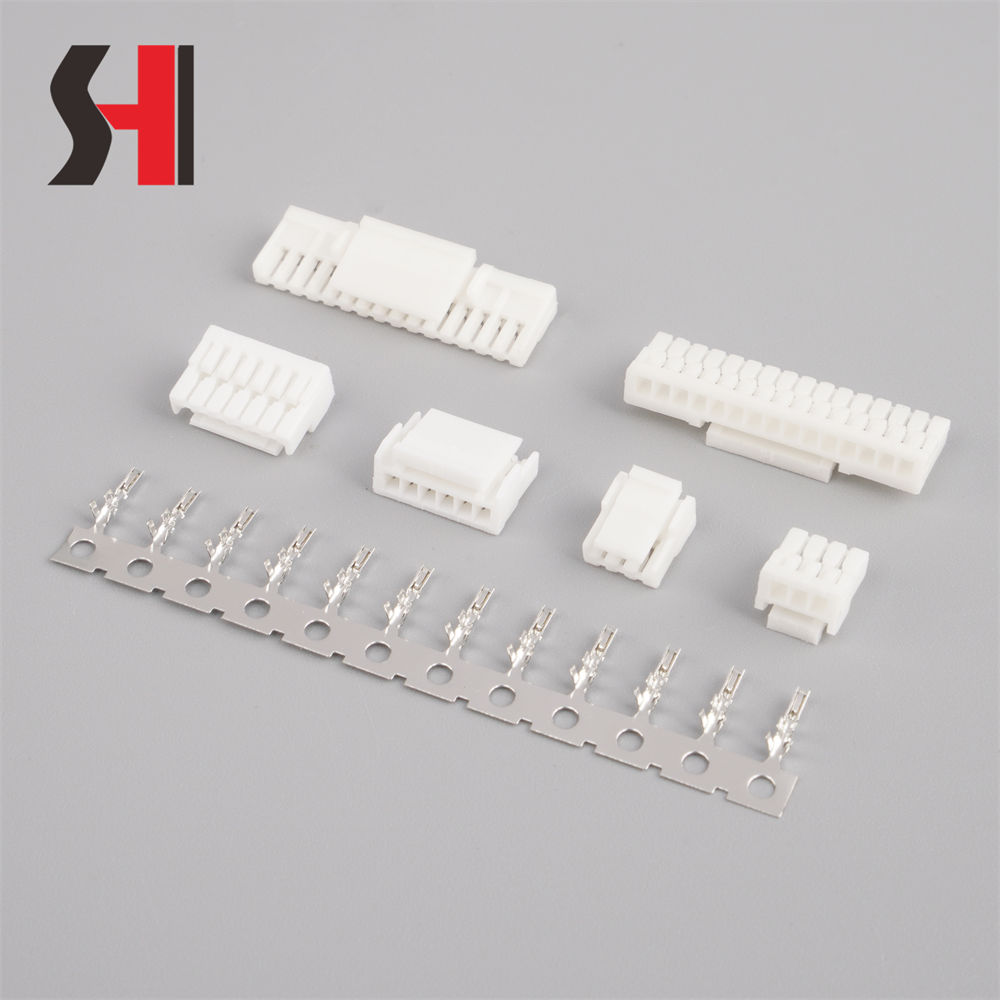

SH12512

SH12512

Pitch: 1.25mm

View product

Type

Connector

Poles

2 to 15P

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

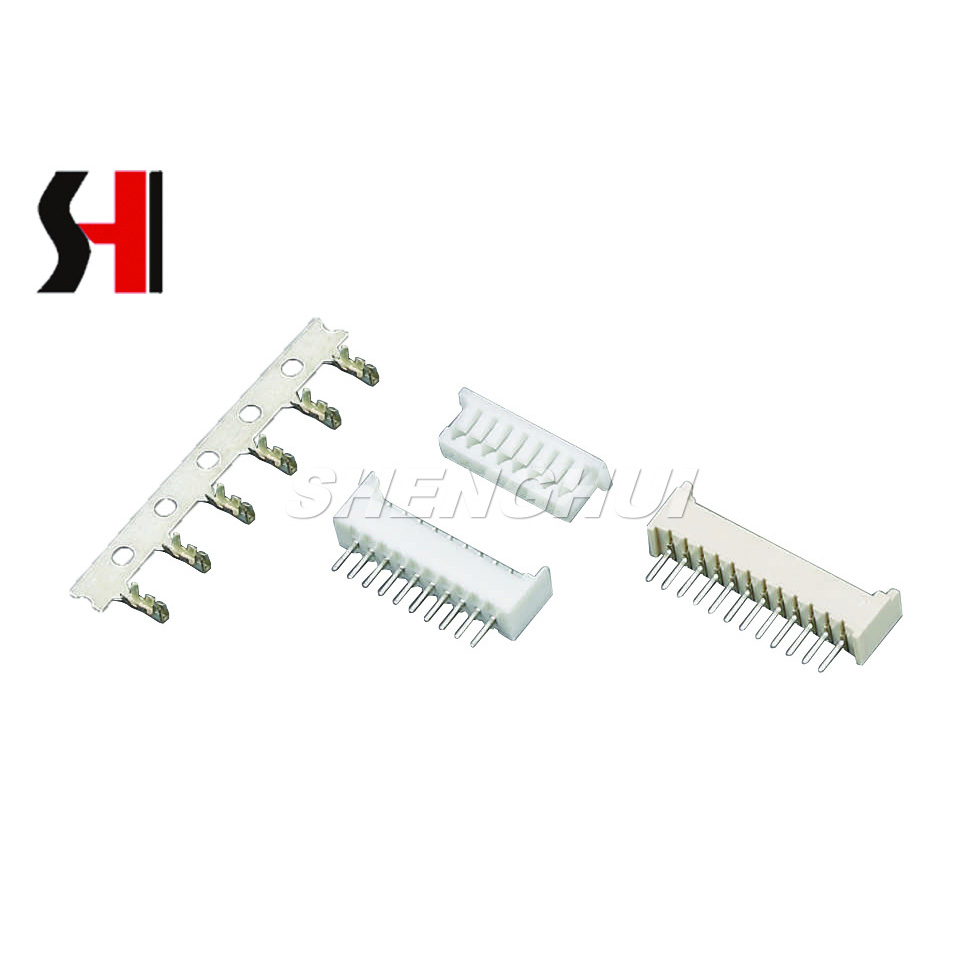

SH12500

SH12500

Pitch: 1.25mm

View product

Type

Connector

Poles

2 to 12P

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Wire Size(AWG)

32-28

Pin

Phosphor bronze tin-plated

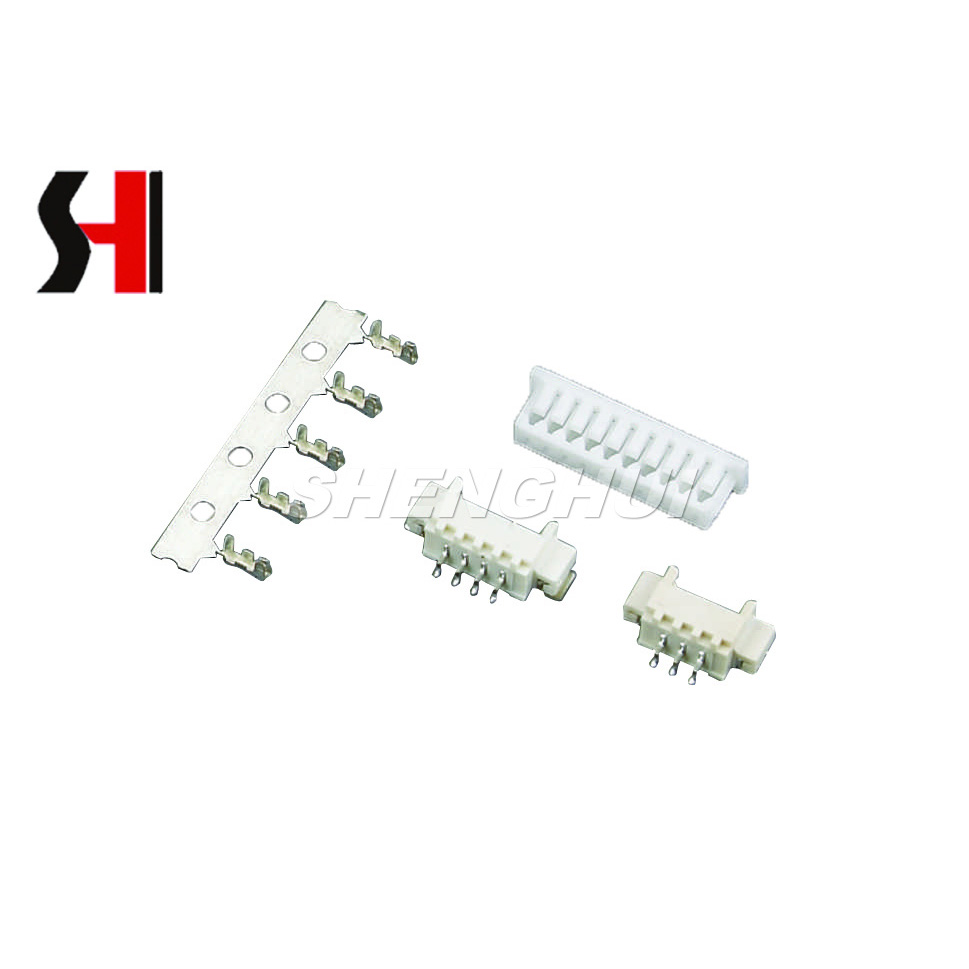

SH12501

SH12501

Pitch: 1.25mm

View product

Type

Connector

Poles

2 to 12P

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

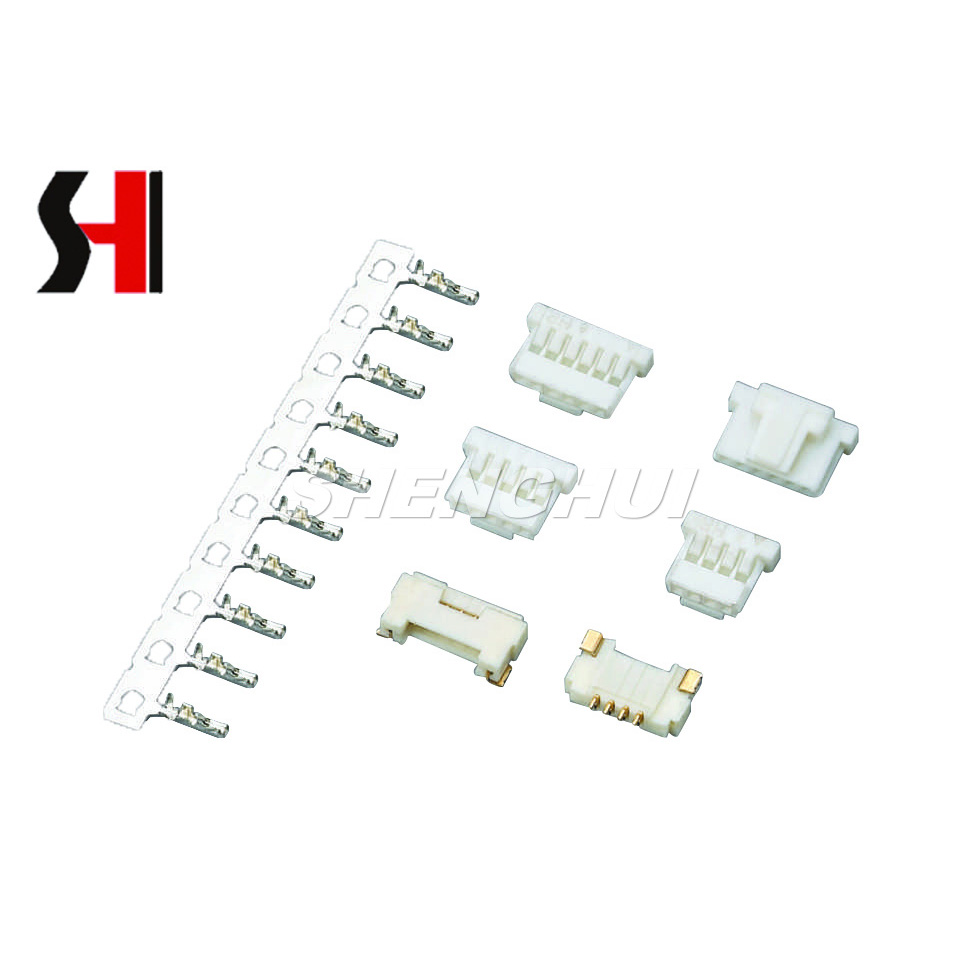

SH12509

SH12509

Pitch: 1.25mm

View product

Type

Connector

Poles

2 to 30P

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Wire Size(AWG)

32-28
