Connector

PRODUCT

Type

Poles

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Phosphor bronze

Wire Size(AWG)

Shield

Stainless steel

Solder tabs

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Pin

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH20009

SH20009

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

28-24

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

SH20012

SH20012

Pitch: 2.0mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Wire Size(AWG)

28-24

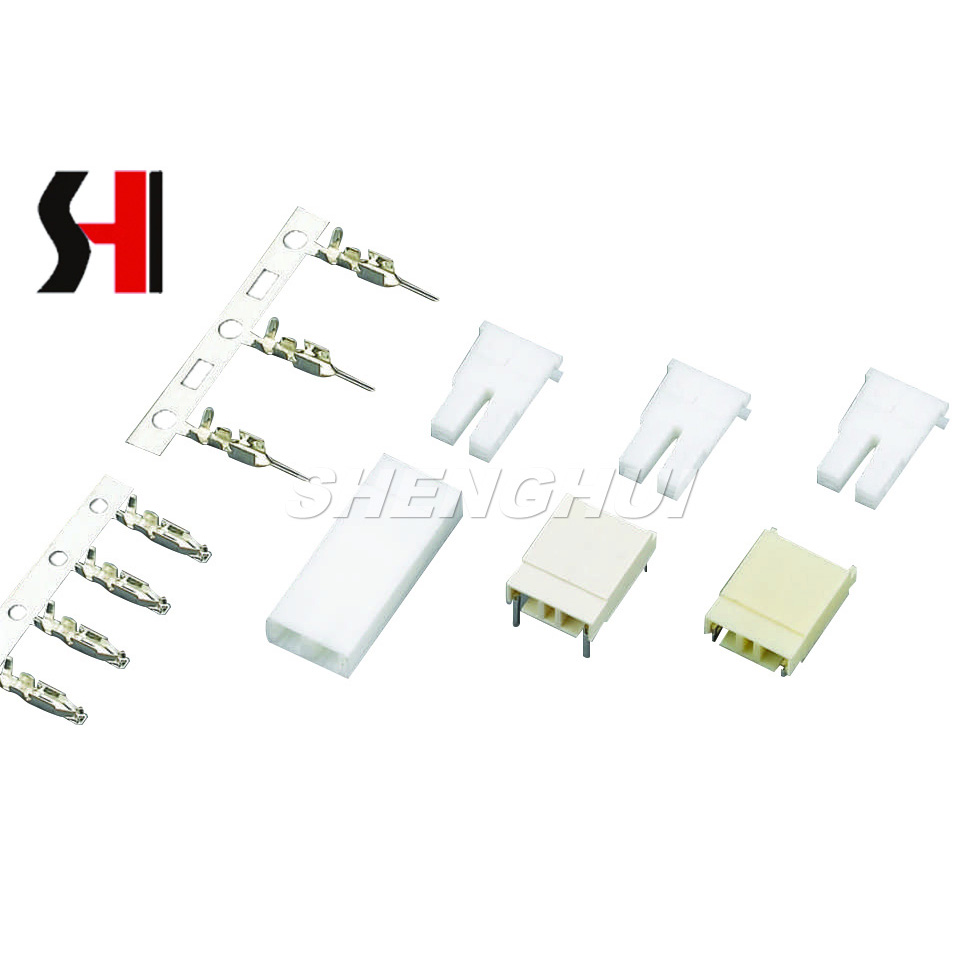

SH35001

SH35001

Pitch: 3.5mm

View product

Type

Connector

Poles

2P

Pitch

3.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

1400V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Wire Size(AWG)

28-24

Solder tabs

Tin-plated brass

Pin

Phosphor bronze tin-plated

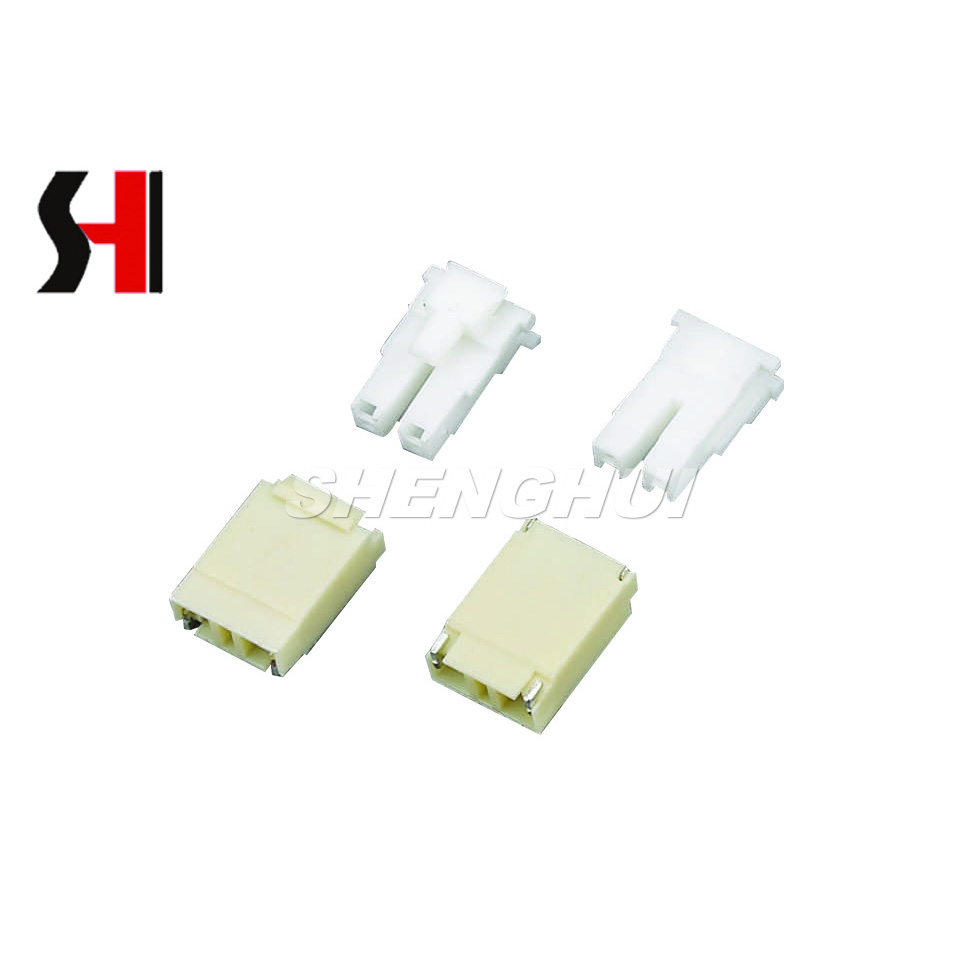

SH35002

SH35002

Pitch: 3.5mm

View product

Type

Connector

Poles

2P

Pitch

3.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

1400V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Wire Size(AWG)

28-24

Solder tabs

Phosphor bronze tin-plated

Pin

Tin-plated brass
