Type

Poles

1 to 6P

2 to 3P

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

PA66

PA66 UL94V-0

PA66 UL94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Wire Size(AWG)

Shield

Solder tabs

Phosphor bronze tin-plated

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH10008

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH10012

Pitch: 1.0mm

View product

Type

Connector

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

500V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH12502

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH12506

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH12510

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH12513

Pitch: 1.25mm

View product

Type

Connector

Pitch

1.25mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH18006

Pitch: 1.8mm

View product

Type

Connector

Pitch

1.8mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

350V AC/DC

Current - Maximum per Contact(Max)(A)

4.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

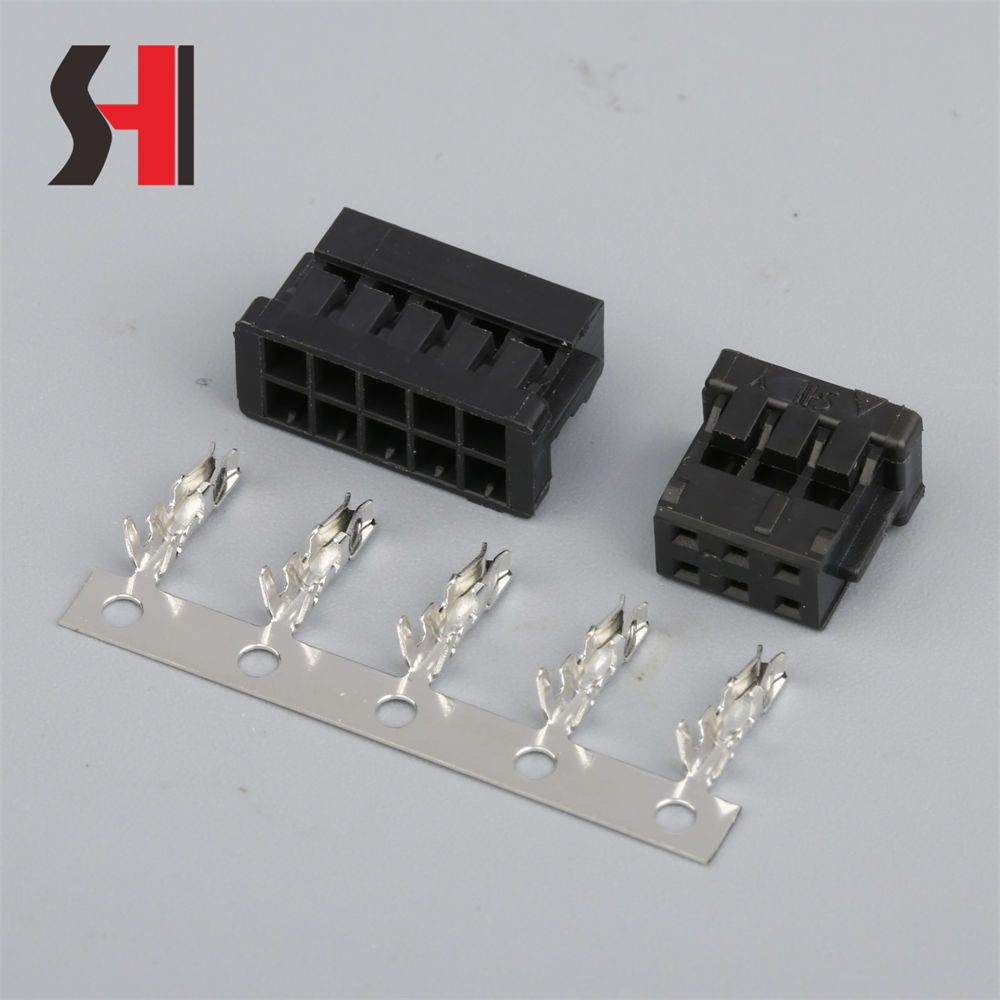

SH20006

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

130V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH10016

Pitch: 1.0mm

View product

Type

Connector

Poles

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

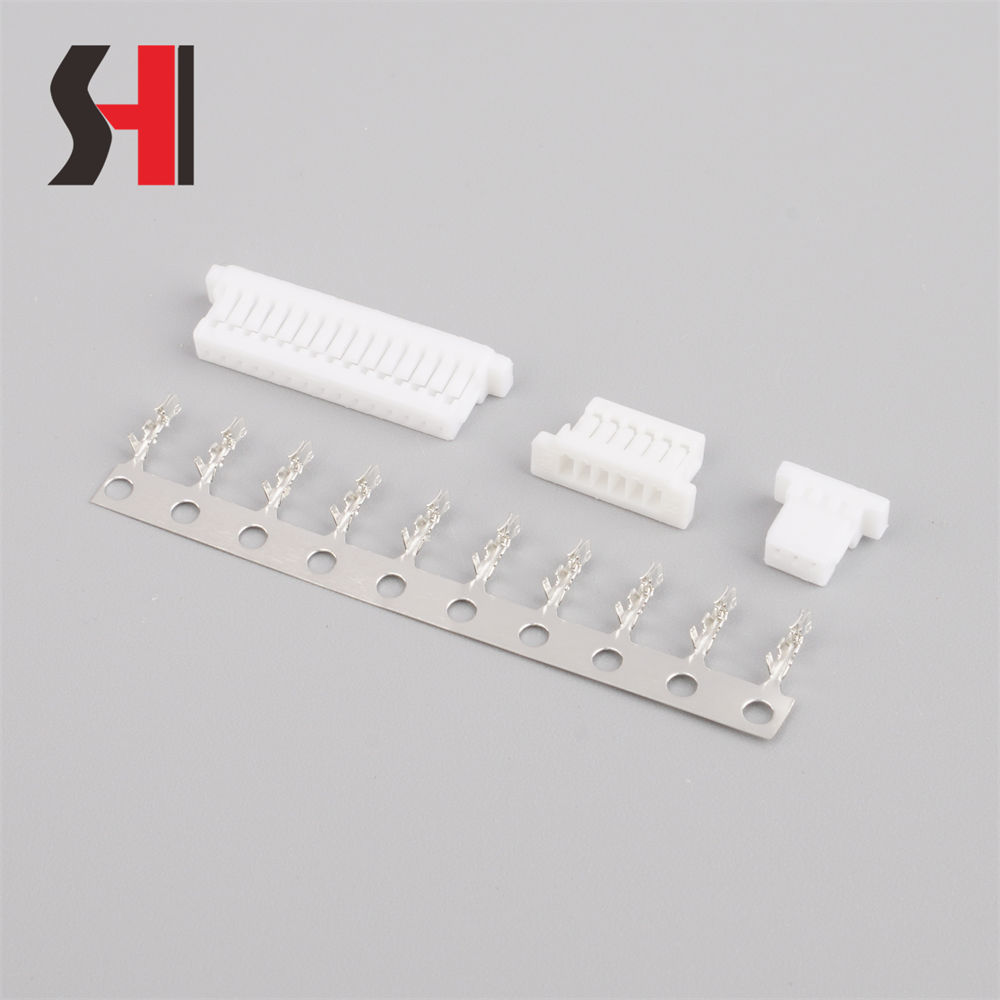

SH10000

Pitch: 1.0mm

View product

Type

Connector

Poles

2 to 20P

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

50V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated
