Type

Poles

1 to 6P

2 to 3P

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

PA66

PA66 UL94V-0

PA66 UL94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Wire Size(AWG)

Shield

Solder tabs

Phosphor bronze tin-plated

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

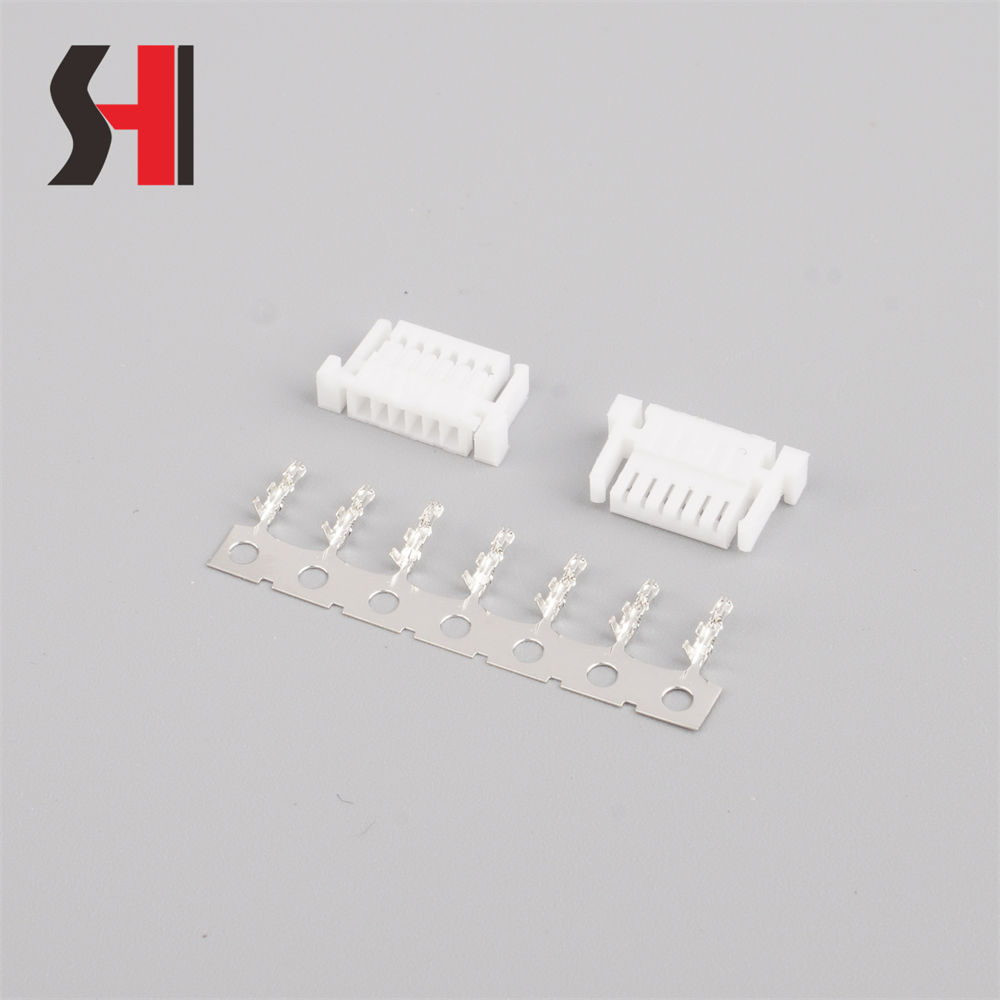

SH10016

Pitch: 1.0mm

View product

Type

Connector

Poles

Pitch

1.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

125V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

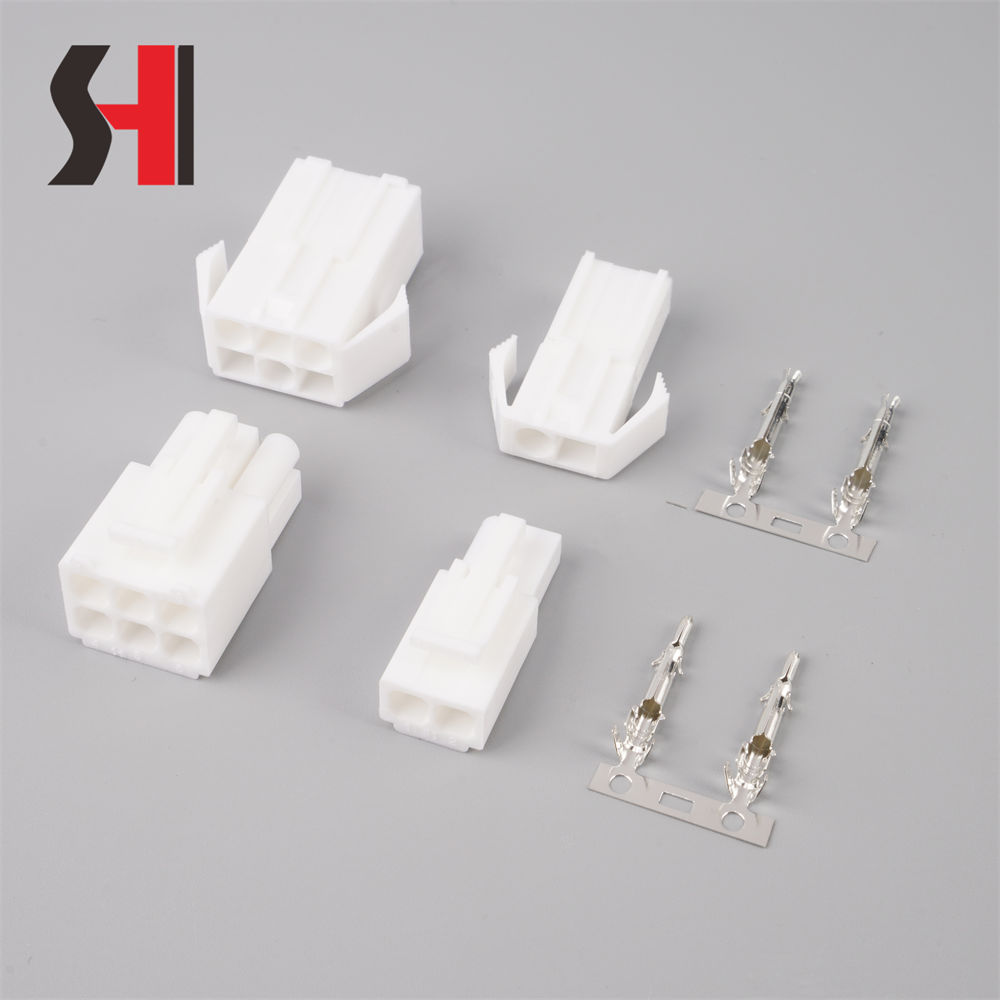

SH45000-RT

Pitch: 4.5mm

View product

Type

Connector

Poles

2P,3P,4P,6P,9P,12P,15P

Pitch

4.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10-6A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

26-18

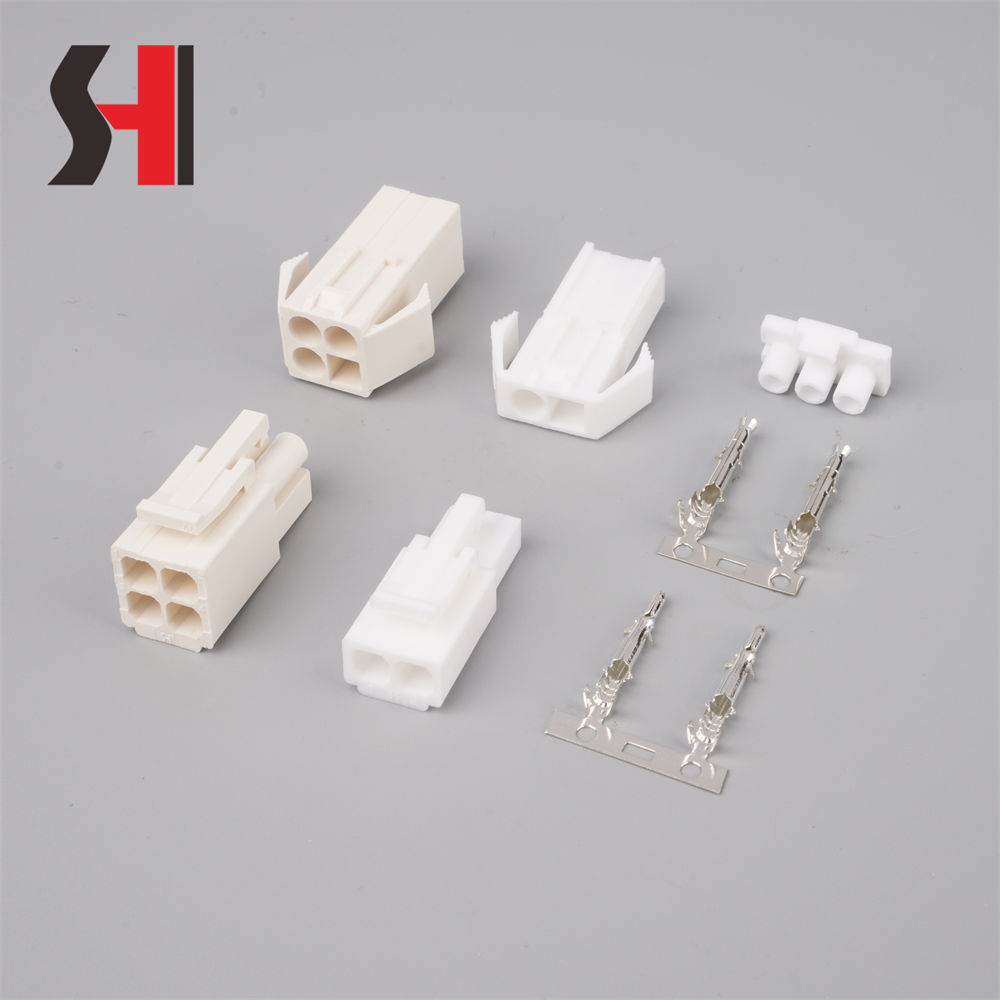

SH45000

Pitch: 4.5mm

View product

Type

Connector

Poles

2P,3P,4P,6P,9P,12P,15P

Pitch

4.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10-6A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

26-18

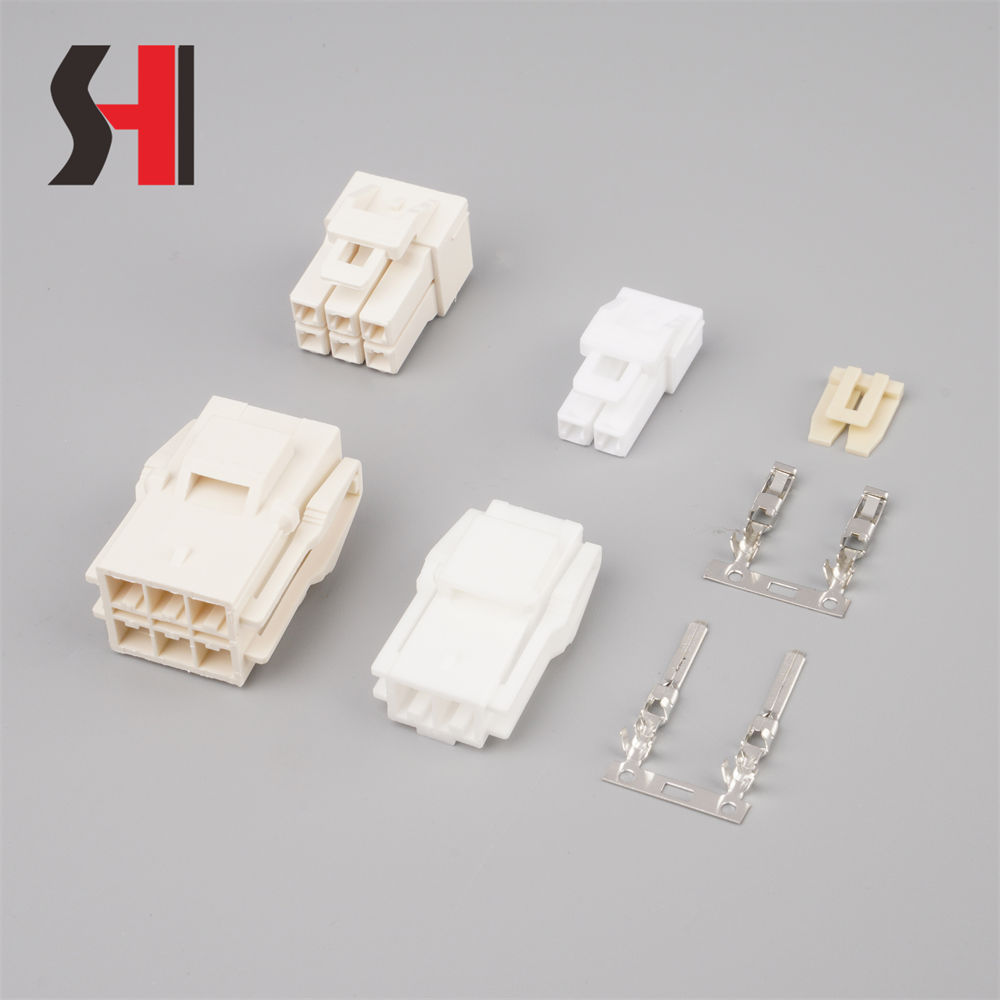

SH45002

Pitch: 4.5mm

View product

Type

Connector

Poles

2P,3P,4P,6P,8P,9P,12P,15P

Pitch

4.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

7-3A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

26-20

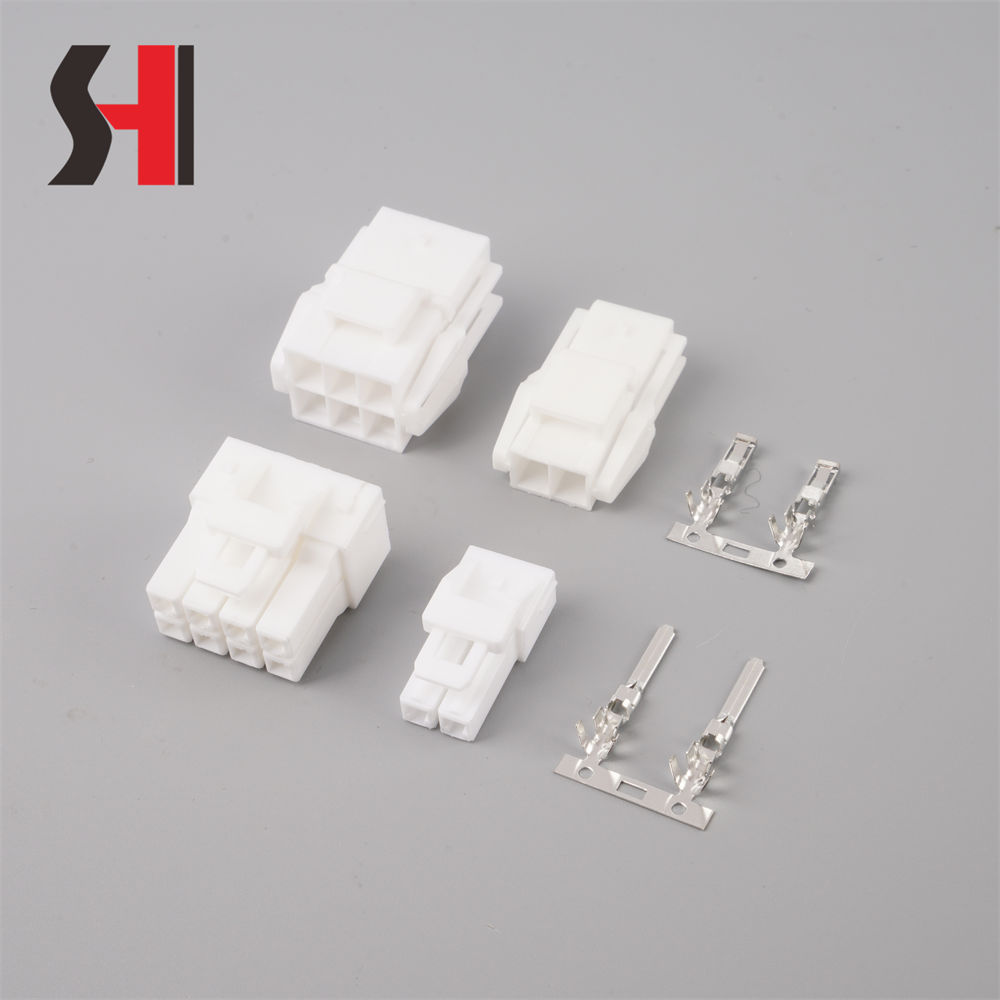

SH45002-PT

Pitch: 4.5mm

View product

Type

Connector

Poles

2P,3P,4P,6P,8P,9P,12P,15P

Pitch

4.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

7-3A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

26-20

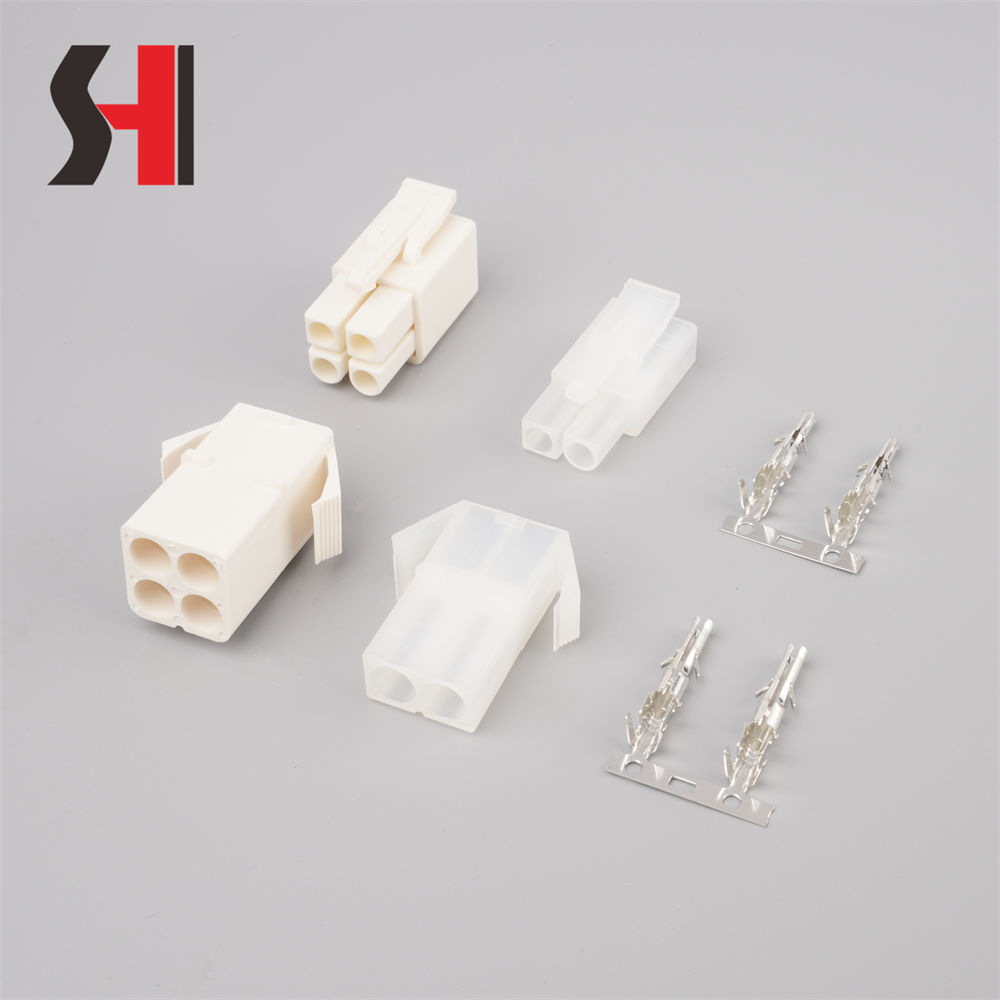

SH62002

Pitch: 6.2mm

View product

Type

Connector

Poles

2P,3P,4P,6P,9P,12P,15P

Pitch

6.2mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

15-10A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

22-16

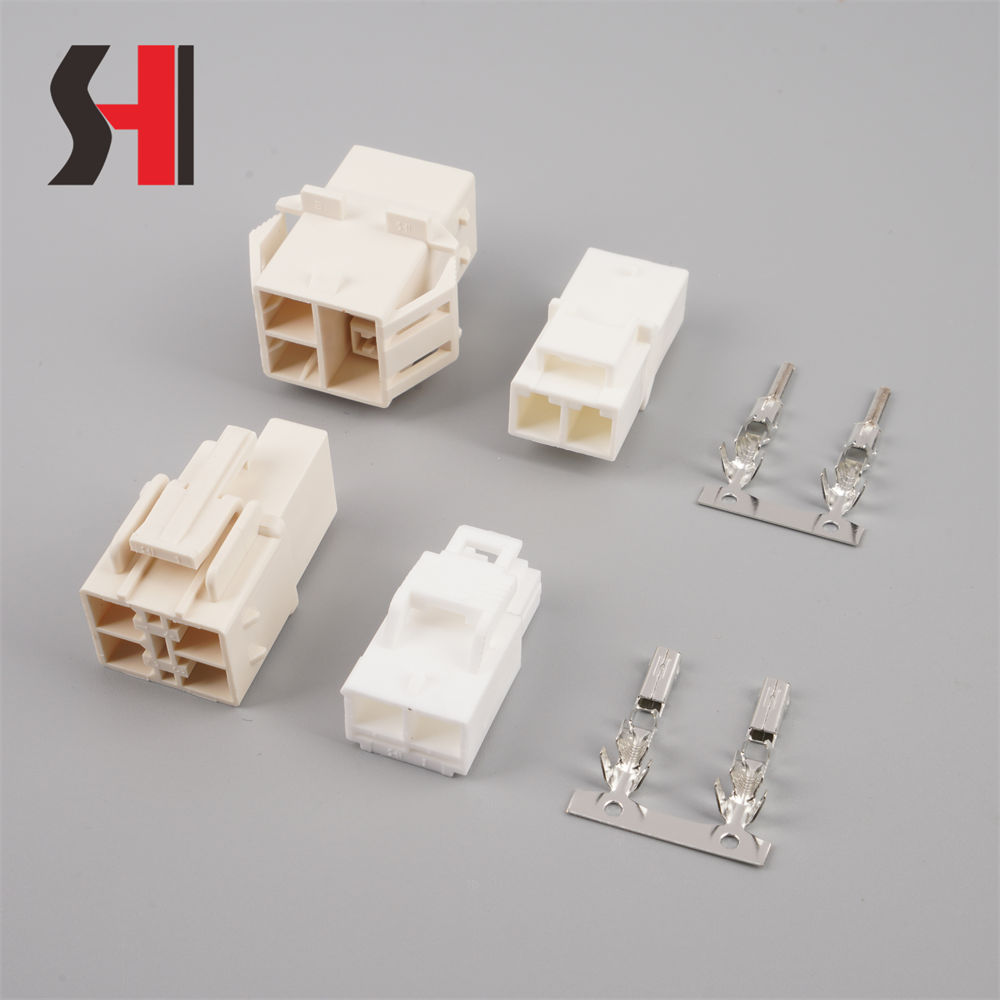

SH50002-T-01

Pitch: 5.0mm

View product

Type

Connector

Poles

2P,3P,4P,6P

Pitch

5.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

24-16

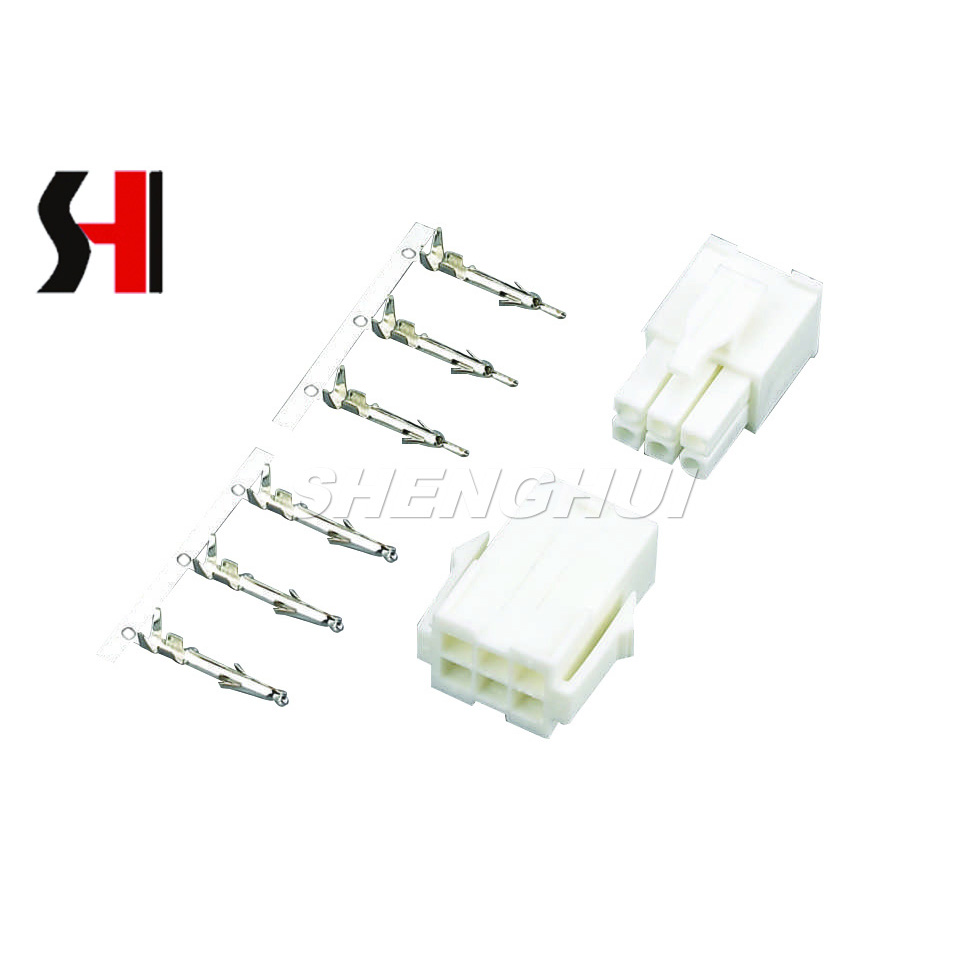

SH41401

Pitch: 4.14mm

View product

Type

Connector

Poles

1P,2P,3P,4P,6P,9P,12P,15P

Pitch

4.14mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10-8A AC/DC

Wire Size(AWG)

26-20

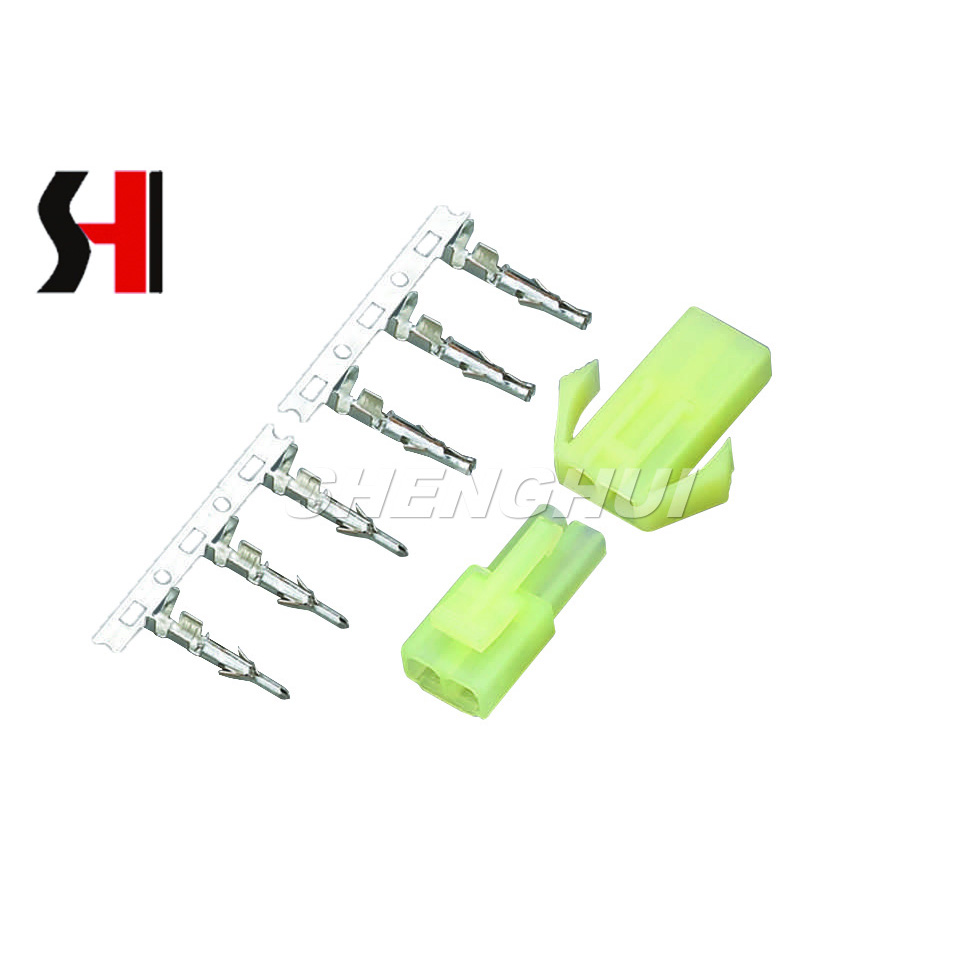

SH45001

Pitch: 4.5mm

View product

Type

Connector

Poles

2P,3P,4P,6P,9P,12P,15P

Pitch

4.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10-6A AC/DC

Wire Size(AWG)

26-18

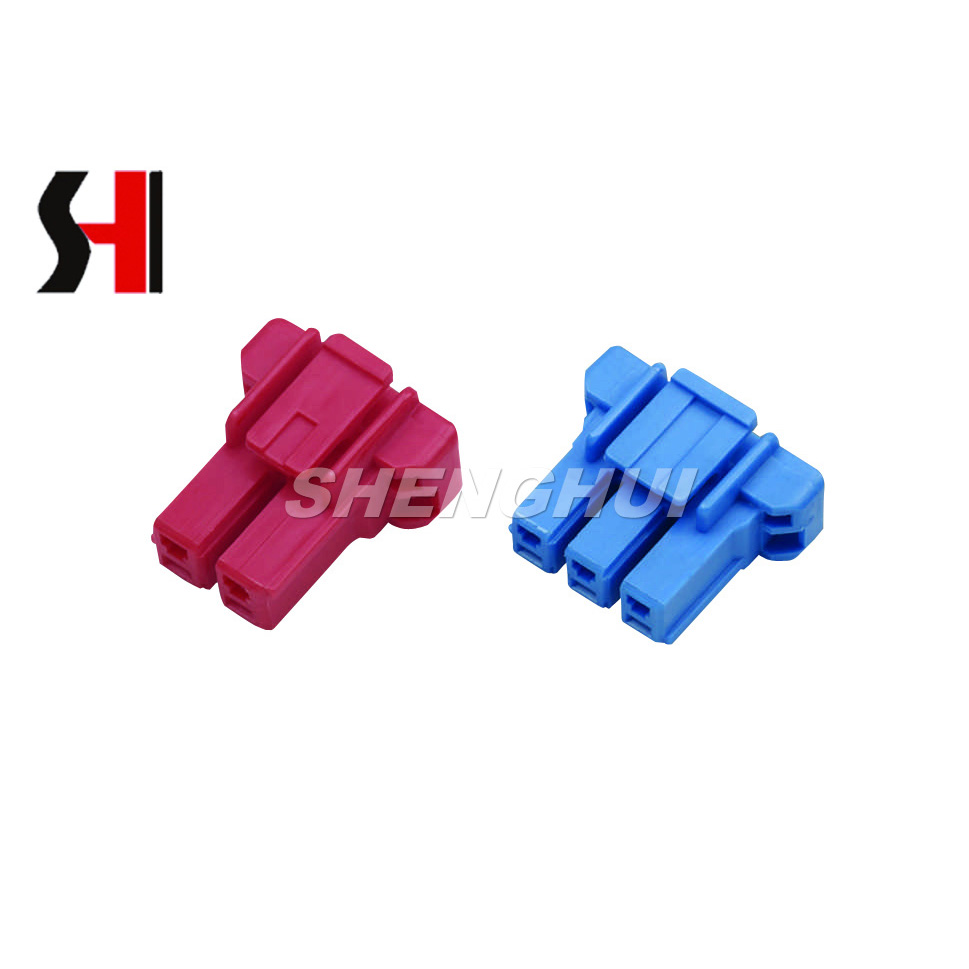

SH50002

Pitch: 5.0mm

View product

Type

Connector

Poles

2P,3P,4P,6P

Pitch

5.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

300V AC/DC

Current - Maximum per Contact(Max)(A)

10A AC/DC

Wire Size(AWG)

24-16
