Type

Poles

1 to 6P

2 to 3P

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

PA66

PA66 UL94V-0

PA66 UL94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Wire Size(AWG)

Shield

Solder tabs

Phosphor bronze tin-plated

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

SH20006

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

130V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

32-28

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH20008

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

1.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

30-26

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH20009

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Color - Resin

Natural

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Brass,Phosphor bronze

Wire Size(AWG)

28-24

Solder tabs

Tin-plated brass

Phosphor bronze tin-plated

SH20004

Pitch: 2.0mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

30-24

Tin-plated brass

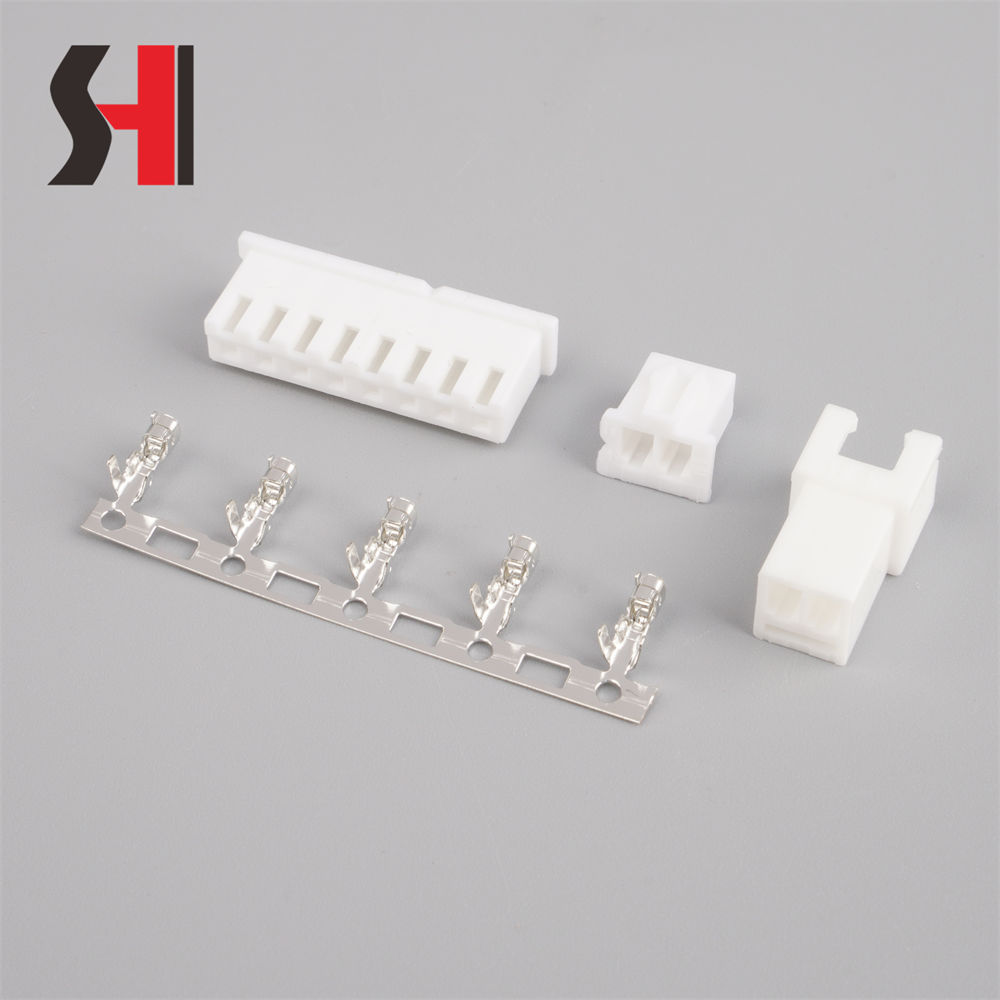

SH20001

Pitch: 2.0mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

100V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

30-24

Tin-plated brass

SH20016

Pitch: 2.0mm

View product

Type

Connector

Poles

4 to 40P

Pitch

2.0mm

Material - Resin and Flammability

PA66 UL94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

32-28

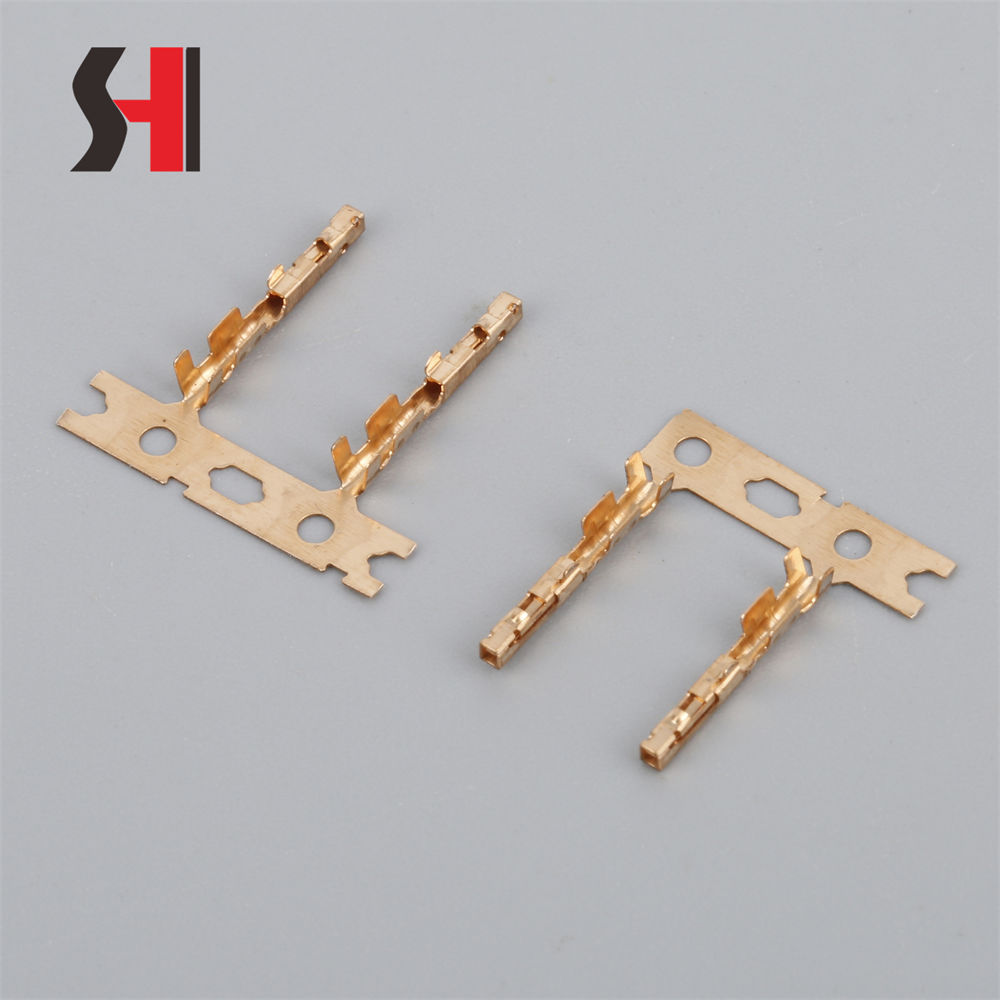

SH20022

Pitch: 2.0mm

View product

Type

Connector

Pitch

2.0mm

Material

Phosphor bronze

Wire Size(AWG)

24-20

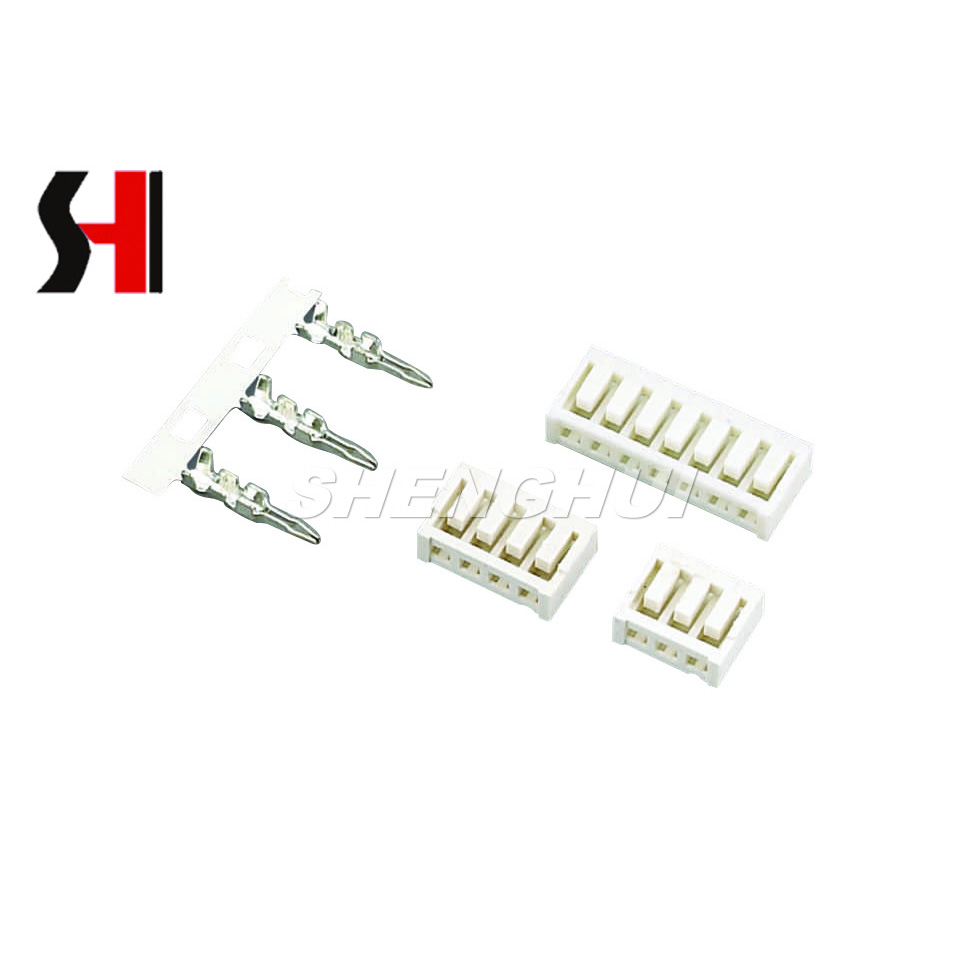

SH20002

Pitch: 2.0mm

View product

Type

Connector

Poles

2 to 15P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Wire Size(AWG)

30-24

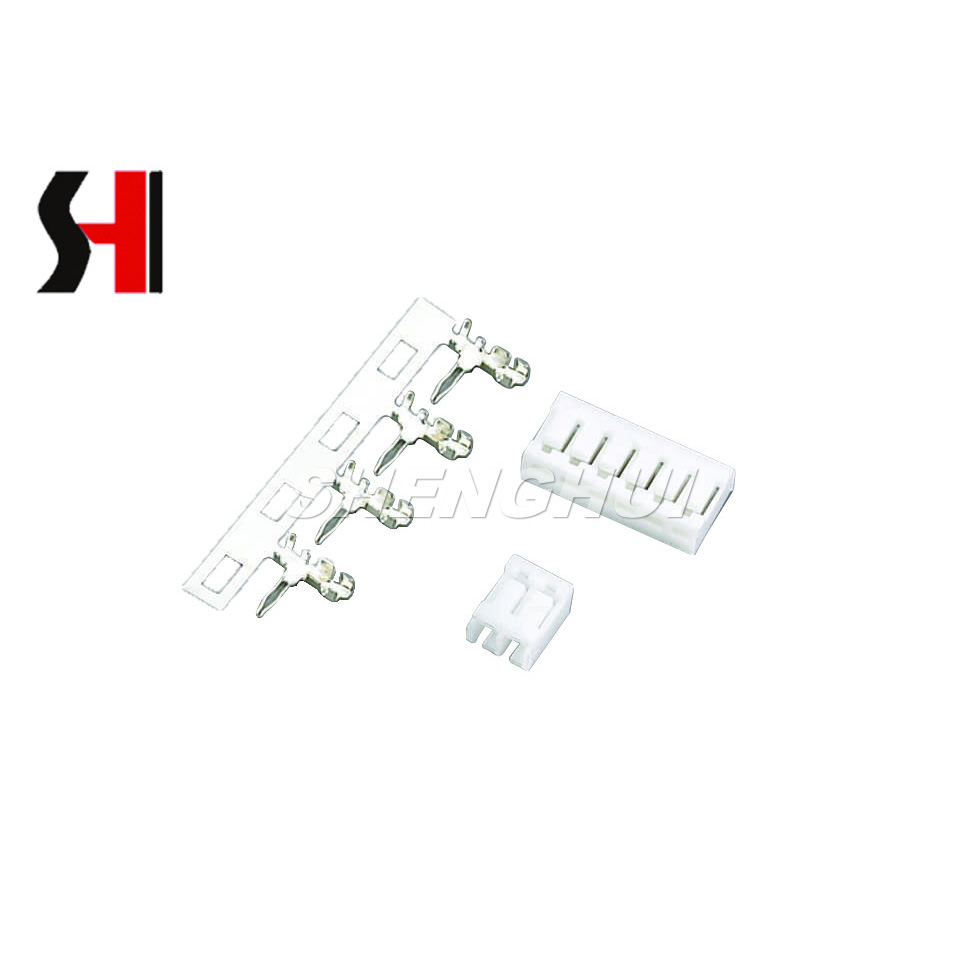

SH20003

Pitch: 2.0mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Wire Size(AWG)

30-24

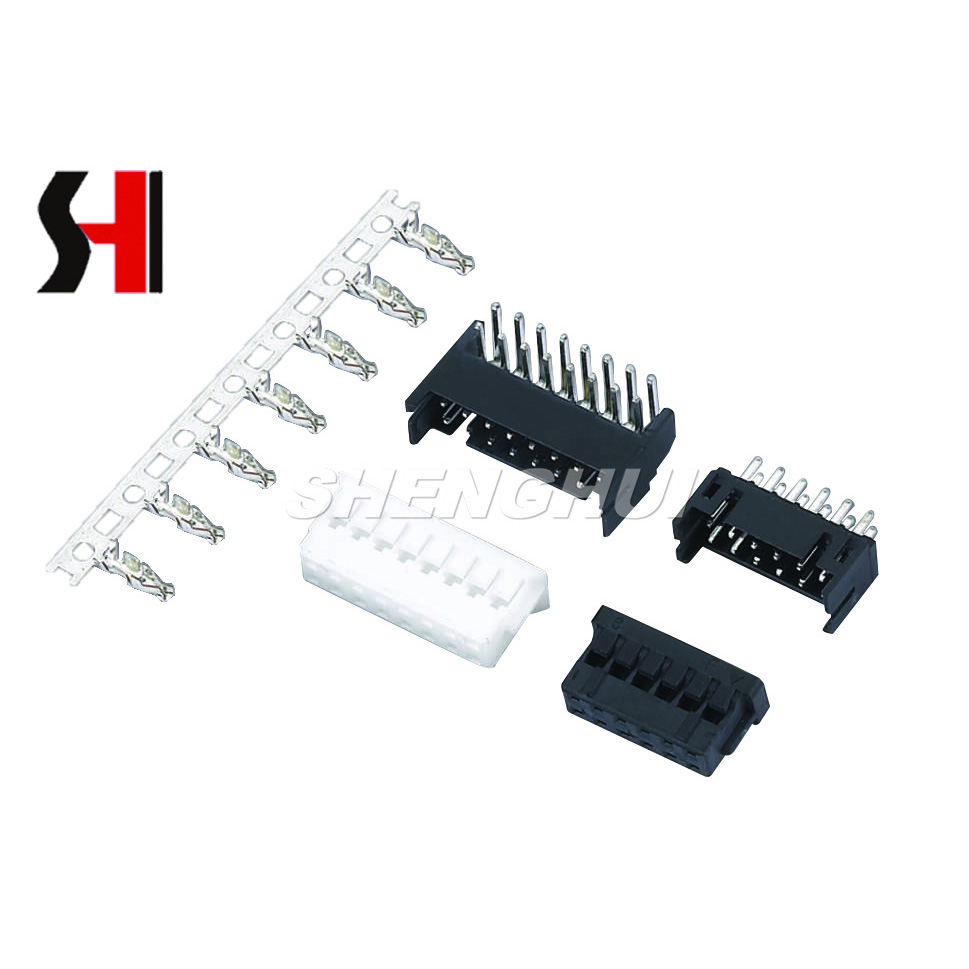

SH20005

Pitch: 2.0mm

View product

Type

Connector

Poles

4 to 20P,8 to 40P

Pitch

2.0mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Tin-plated brass
