Type

Poles

1 to 6P

2 to 3P

Pitch

Material - Resin and Flammability

Nylon 66 UL 94V-0

Nylon 66 UL 94V-2

Nylon 66 UL 94V-0 or UL 94V-2

PA66

PA66 UL94V-0

PA66 UL94V-2

Thermoplastic UL94V-0

Color - Resin

Voltage - Maximum(VAC/DC)

Current - Maximum per Contact(Max)(A)

Material

Wire Size(AWG)

Shield

Solder tabs

Phosphor bronze tin-plated

Tin-plated brass

Gold-plated brass

Phosphor bronze tin-plated

Screening results

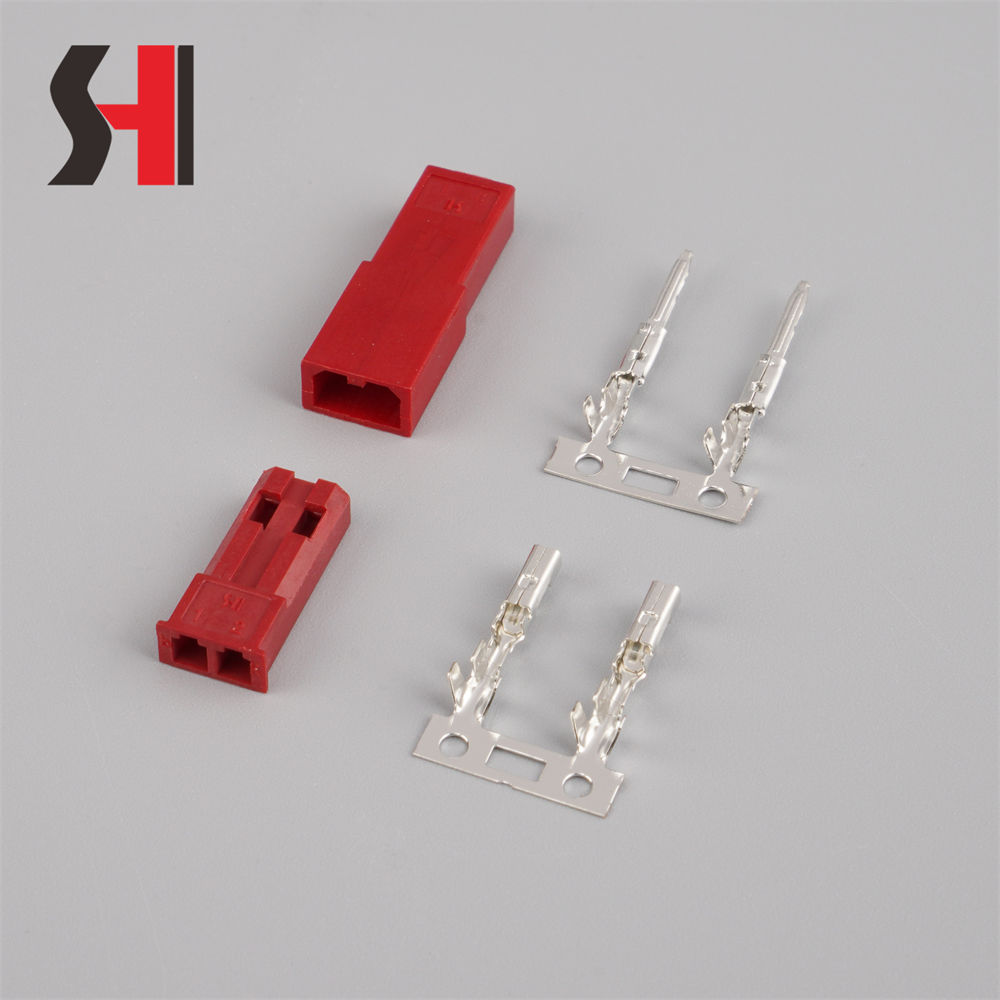

SH25006

Pitch: 2.5mm

View product

Type

Connector

Poles

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

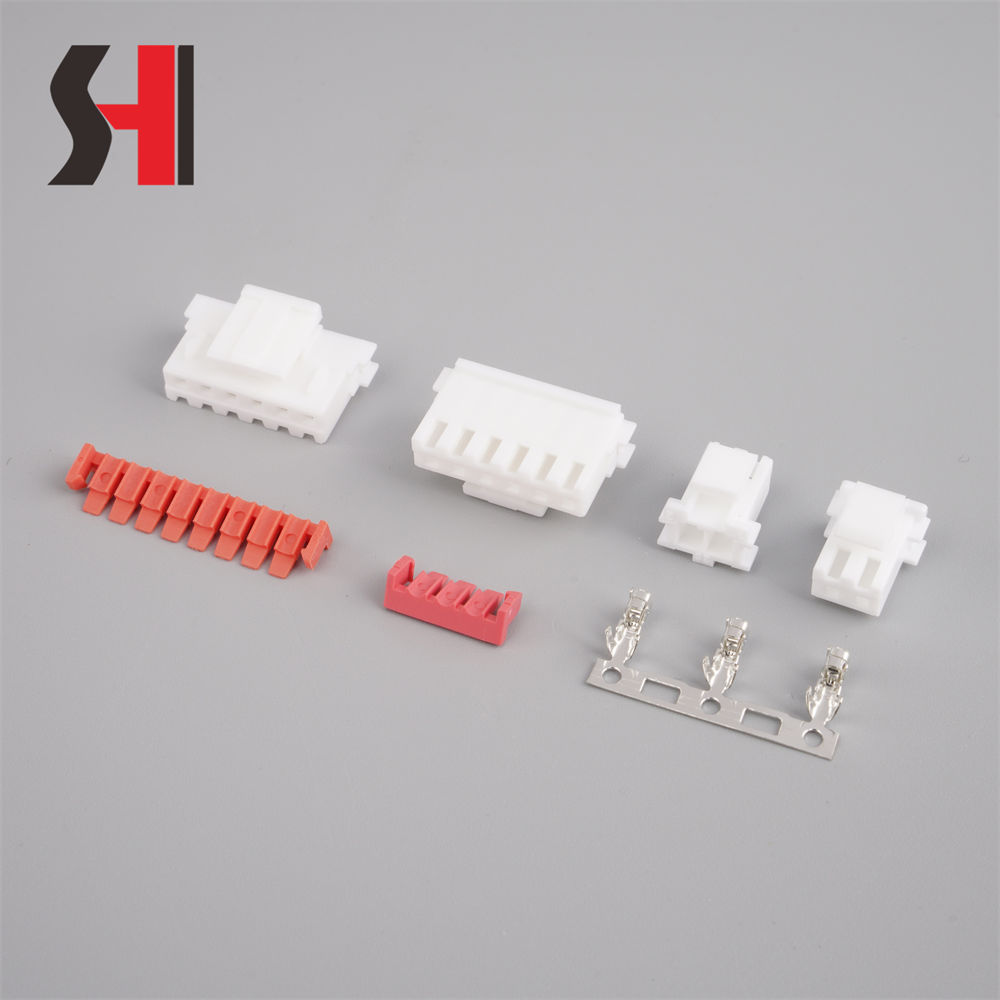

SH25026

Pitch: 2.5mm

View product

Type

Connector

Poles

3 to 15P

Pitch

2.5mm

Material - Resin and Flammability

PA66 UL94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

SH25007-RT

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 12P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

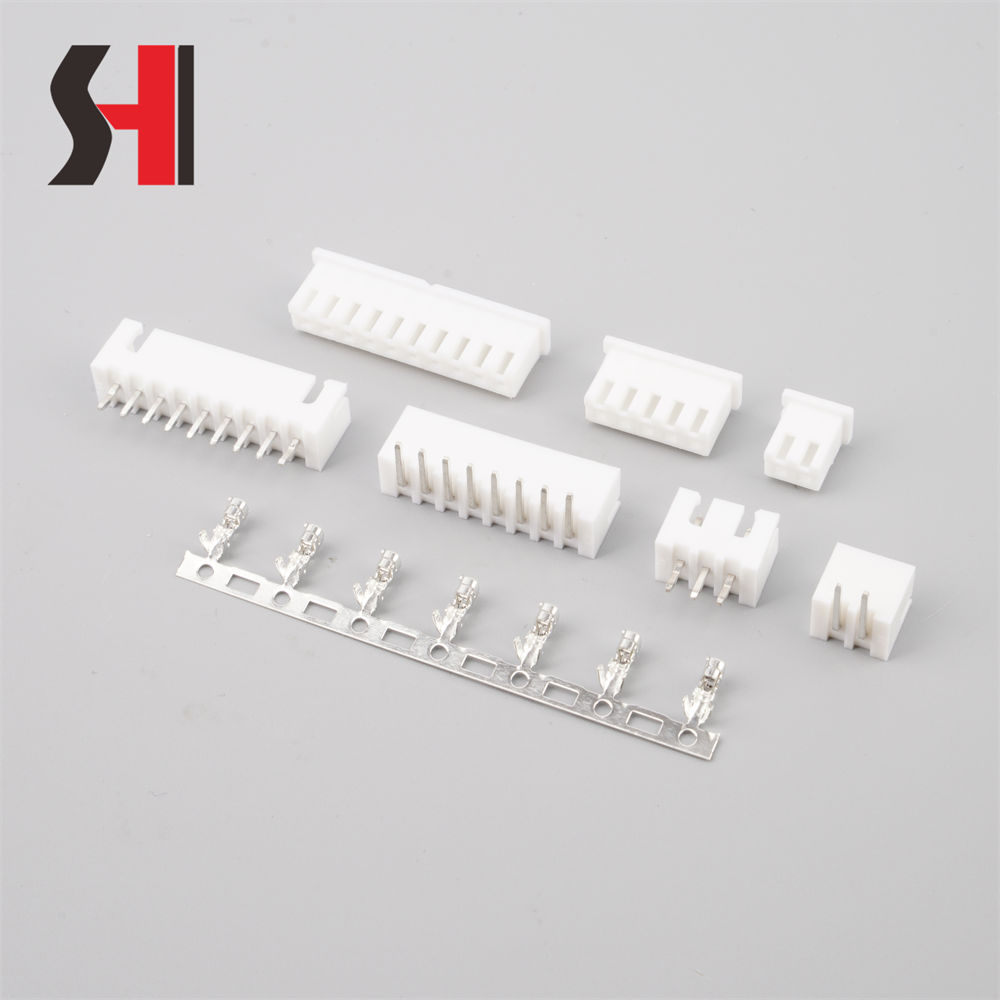

SH25001

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

Tin-plated brass

SH25007

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 12P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

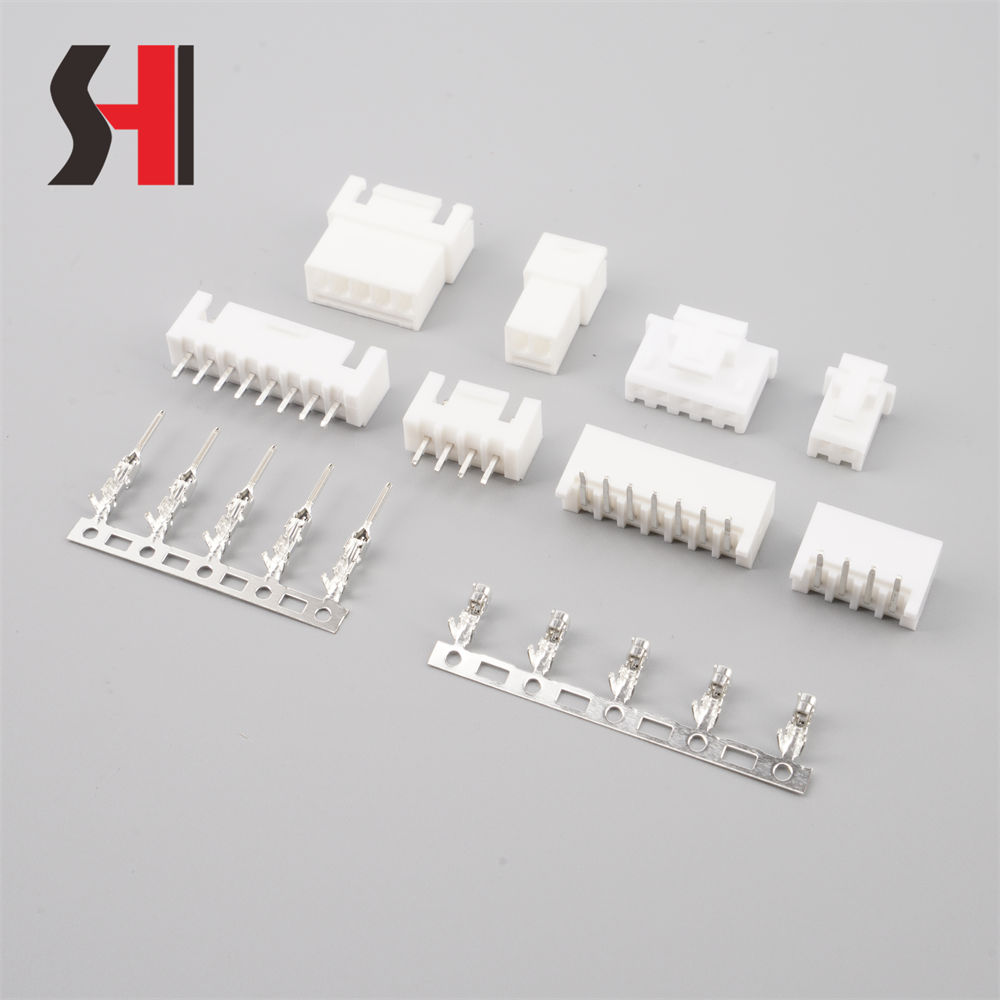

SH25027

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 17P

Pitch

2.5mm

Material - Resin and Flammability

PA66 UL94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Material

Phosphor bronze

Wire Size(AWG)

28-22

SH25002

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 15P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Wire Size(AWG)

28-22

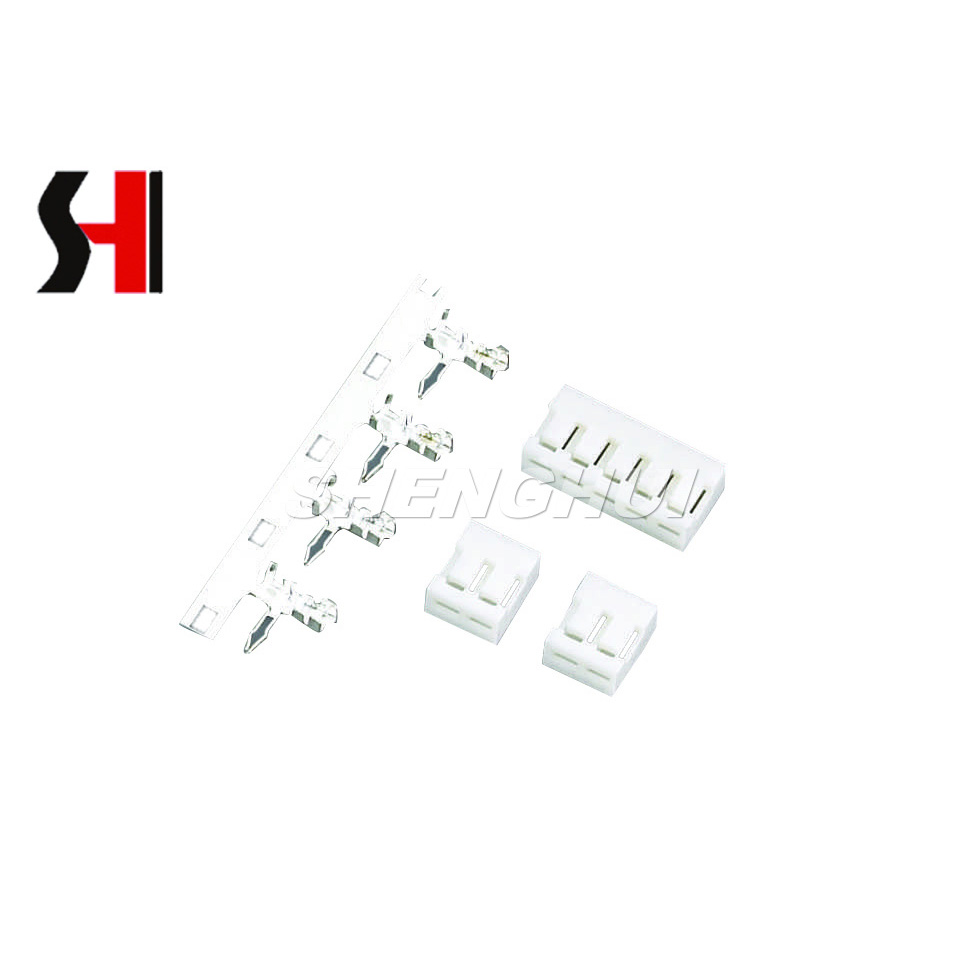

SH25003

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

2.0A AC/DC

Wire Size(AWG)

30-22

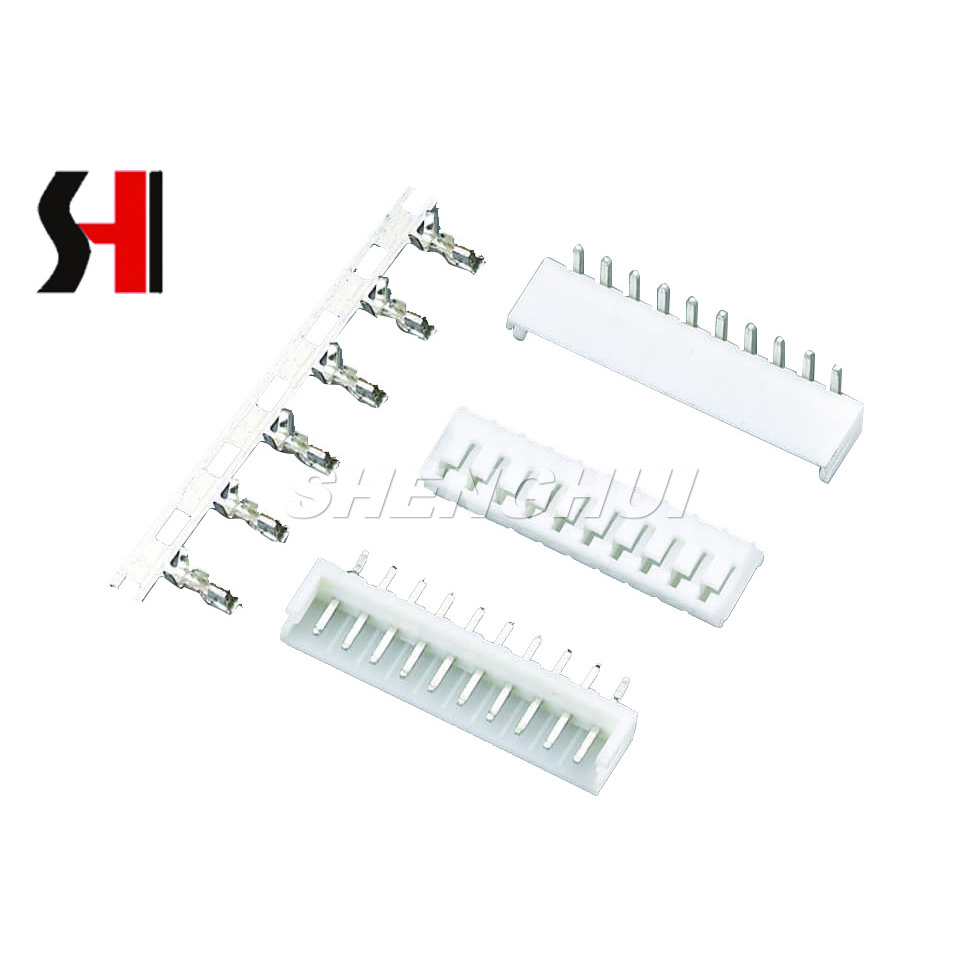

SH25004

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

250V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Wire Size(AWG)

30-22

Tin-plated brass

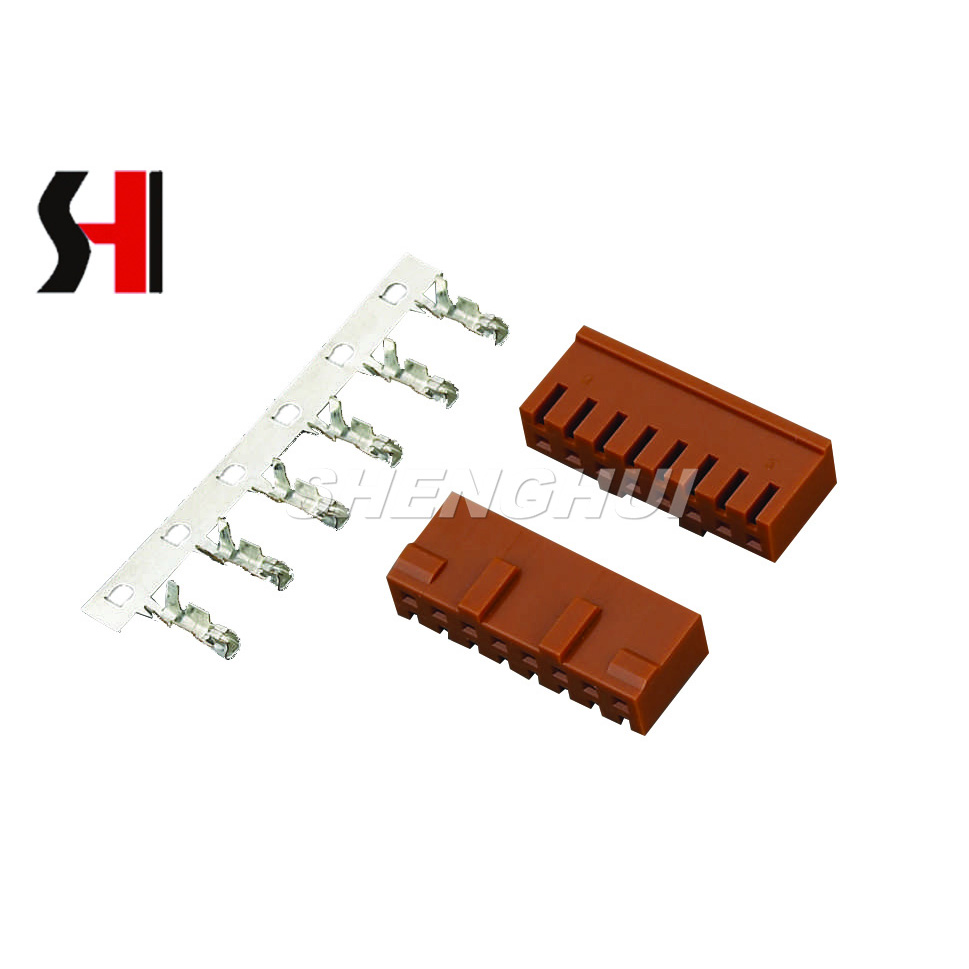

SH25005

Pitch: 2.5mm

View product

Type

Connector

Poles

2 to 16P

Pitch

2.5mm

Material - Resin and Flammability

Nylon 66 UL 94V-0 or UL 94V-2

Voltage - Maximum

500V AC/DC

Current - Maximum per Contact(Max)(A)

3.0A AC/DC

Wire Size(AWG)

28-22

Tin-plated brass
