Screening results
Type

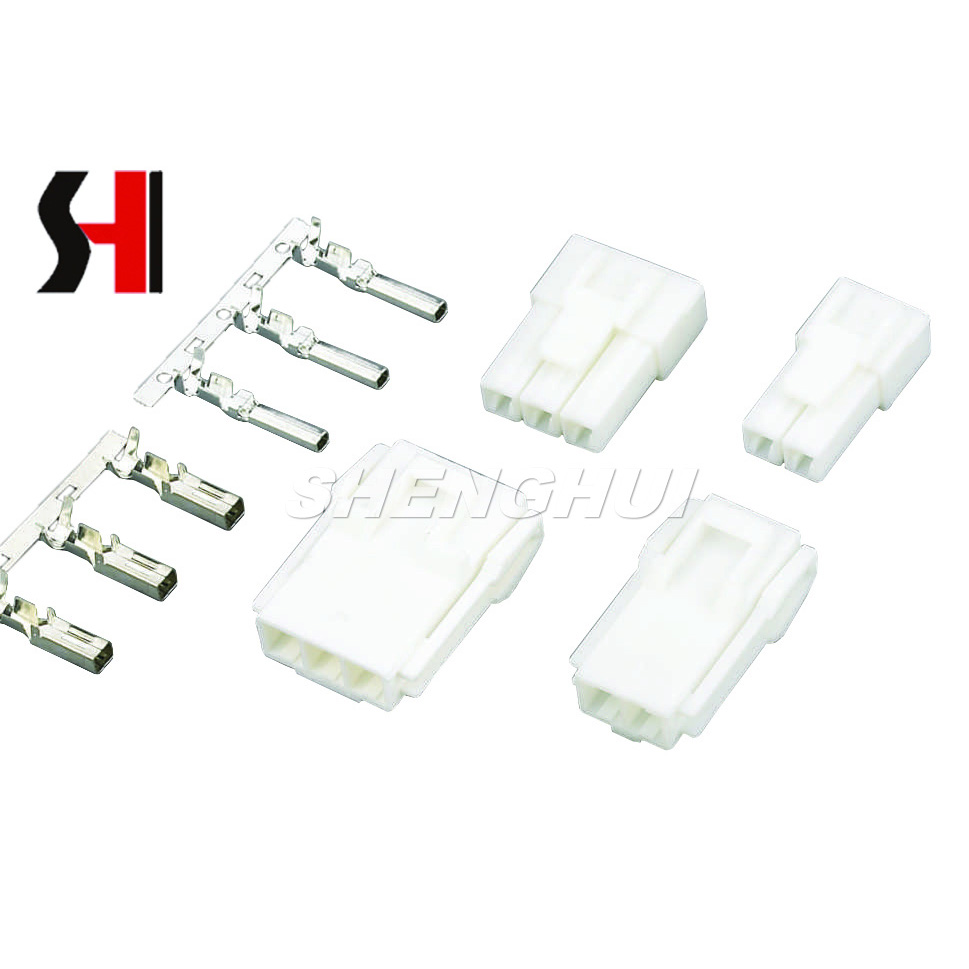

Connector
Poles
2P,3P,4P,6P,9P,12P,15P
Pitch
6.2mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Voltage - Maximum
300V AC/DC
Current - Maximum per Contact(Max)(A)
15-10A AC/DC
Material
Phosphor bronze
Wire Size(AWG)
22-16
Type
Connector
Poles
1P,2P,3P,6P
Pitch
6.2mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Voltage - Maximum
300V AC/DC
Current - Maximum per Contact(Max)(A)
20A AC/DC
Wire Size(AWG)
18-14
