Screening results

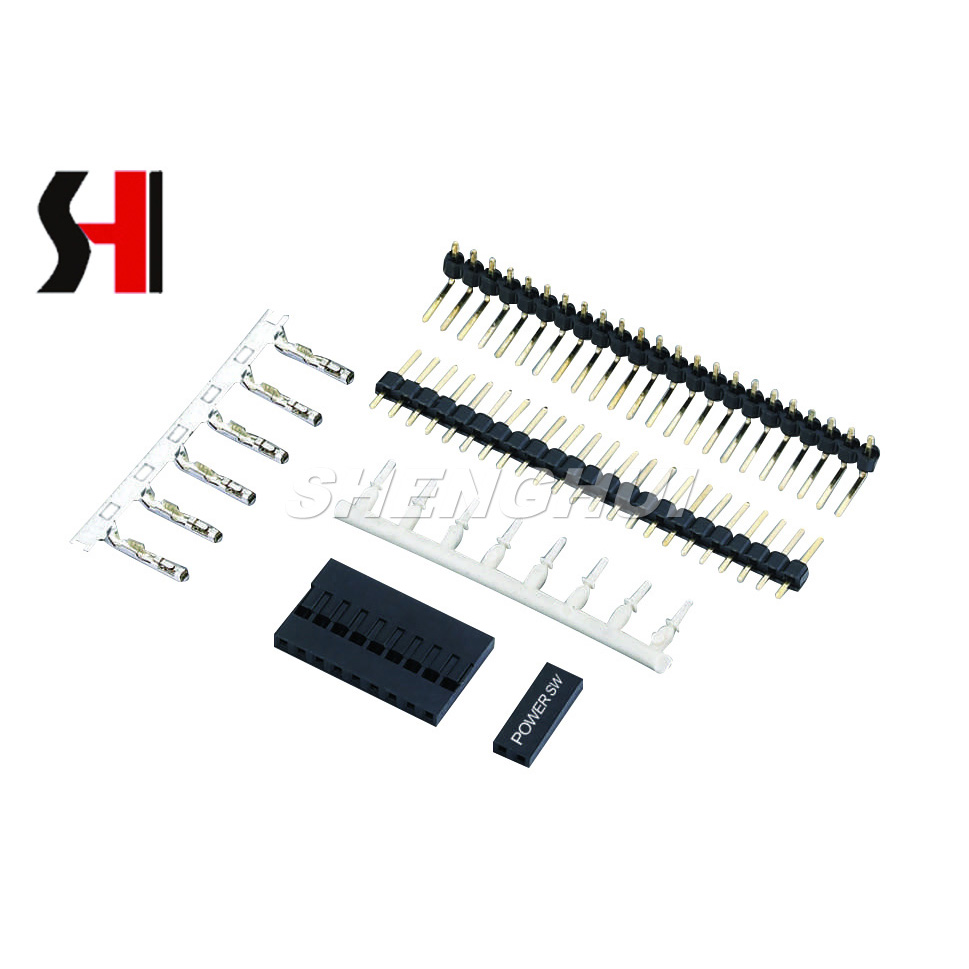

Type
Connector
Poles
2 to 20P
Pitch
2.54mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Voltage - Maximum
250V AC/DC
Current - Maximum per Contact(Max)(A)
3.0A AC/DC
Wire Size(AWG)
28-22
Pin
Gold-plated brass

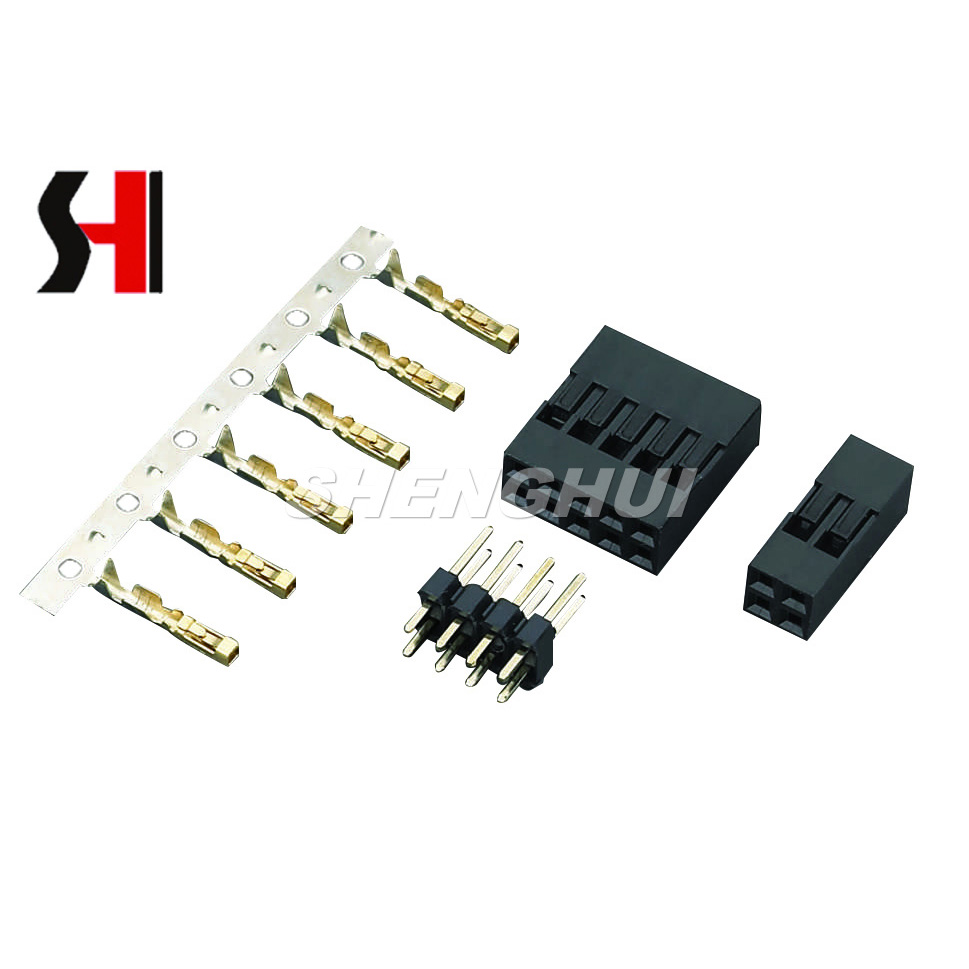

Type
Connector
Poles
4 to 40P
Pitch
2.54mm
Material - Resin and Flammability
Nylon 66 UL 94V-0
Voltage - Maximum
250V AC/DC
Current - Maximum per Contact(Max)(A)
3.0A AC/DC
Wire Size(AWG)
28-22
Pin
Gold-plated brass
Type
Connector
Poles
2 to 12P
Pitch
2.54mm
Material - Resin and Flammability
Nylon 66 UL 94V-2
Voltage - Maximum
250V AC/DC
Current - Maximum per Contact(Max)(A)
3.0A AC/DC
Wire Size(AWG)
28-22
